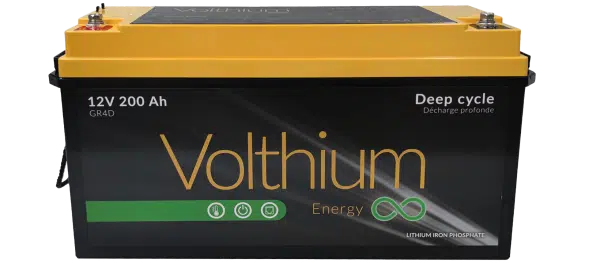

Volthium 12V 200Ah Self-Heating Battery – ABS 4D Format

12V 200Ah Self-Heating Battery – ABS 4D Format

The Volthium 12V 200Ah ABS Self-Heating LiFePO4 battery in 4D format is purpose-built for cottage owners, RV users, the trucking industry, and industrial applications. Featuring automotive-grade cells, a Texas Instruments BMS, and an exclusive dual self-heating system, it delivers reliable performance in extreme Canadian conditions — discharging to -25°C and recharging to -40°C.

Key Features

• 2.4kWh energy capacity — 12V 200Ah LiFePO4 in a rugged ABS 4D form factor
• 150A continuous / 200A peak (30s) discharge current — reliable output for demanding loads
• 1 RJ45 communication port — MODBUS and CANbus compatible; Smart Bridge ready for Victron and other monitoring systems
• IP55 splash-resistant housing — built for demanding environments
• On/Off switch — disable discharge during storage while keeping charge active; eliminates parasitic drain
• Exclusive dual self-heating system — two independent heating systems for total cold-weather reliability:
  • Automatic: activates when charging below 0°C, using charger energy to warm the battery
  • Manual (H+ connector): triggered via the dedicated M6 H+ connector for professional use; operates down to -25°C using the battery’s own energy — use with a timer to prevent unattended operation
• Discharge to -25°C — outperforms competition rated to -20°C
• Recharge to -40°C — enabled by the self-heating system and automotive-grade cell quality
• Cold charging protection — engineered for Canadian climate conditions
• Accessible BMS compartment — reserved access panel for easy servicing and repair
• Vibration-resistant construction — ideal for mobile and industrial applications
• Smart Bridge compatible — add Bluetooth monitoring via the Volthium app; connect to Victron and all major monitoring environments
• 6,000+ cycle lifespan — useful life of 15 years and beyond
• 10-year limited warranty

Physical Specifications

• Dimensions: 482 × 245 × 170 mm (19 × 9.64 × 6.7 in)
• Weight: 22.7 kg (50 lbs)
• Protection rating: IP55

Certifications

• Complete Assembly: ABYC
• Cells: UL1642, UL1973, IEC62619, IEC62660, CSA UL9540A

Ideal For

• Cottages and off-grid cabins
• RVs, motorhomes, and van builds
• Trucking and transportation industry
• Industrial and commercial applications
• Cold-climate installations requiring dual self-heating

Ships from Thunder Battery — Canada’s trusted source for premium energy storage solutions.
