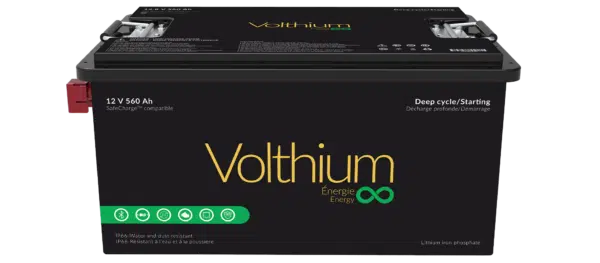

Volthium 12V 560Ah PRO Battery

12V 560Ah PRO Battery

The Volthium 12V 560Ah PRO is a flagship LiFePO4 battery engineered for the transportation industry, commercial marine vessels, and high-demand recreational vehicles. With 300A continuous discharge, 1100 CCA starting capability, IP66 protection, and SafeCharge alternator compatibility, it delivers unmatched autonomy and simplicity in a single battery — replacing up to 8 lead-acid batteries and freeing 372 lbs of payload. Built and programmed by Volthium engineers in Québec for extreme Canadian conditions.

Key Features

• 6.72kWh energy capacity — 12V 560Ah LiFePO4, ultra energy-dense form factor
• 300A continuous discharge — 400A for 30 seconds, 600A for 8 seconds
• 300A charge current — ultra-high-performance BMS handles high current peaks
• 1,100 CCA starting capability — reliable engine starts in any condition
• SafeCharge compatible — safe direct alternator charging without complex wiring modifications; preserves engine warranty and eliminates idle charging
• Dual self-heating system — standard intelligent heating + integrated thermostat; automatically redirects charger current to heating elements below safe operating temperature, then thermostat maintains ideal range
• IP66 rated — dust-tight and jet-water resistant for demanding environments
• Integrated Bluetooth — monitor battery data directly from your device
• LED charge indicator — instant state-of-charge visibility
• On/Off switch — disable discharge during storage while keeping charge active
• 2 M12-10P communication ports — CAN Bus and RS485 for system integration
• High reserve capacity — powers onboard equipment without engine idling
• Replaces up to 8 lead-acid batteries — frees 372 lbs of payload capacity
• 6,000+ cycle lifespan — useful life exceeding 15 years
• 10-year limited warranty (5-year commercial use)

Physical Specifications

• Dimensions: 532 × 262 × 341 mm (20.9 × 10.3 × 13.4 in)
• Protection rating: IP66

Certifications

• CSA UL1973 | UL9540A | IEC62619 | RoHS
• ABYC E-13 | UN3480 | CLASS 9

Return on Investment

By eliminating engine idling, this battery saves up to 32 litres of fuel per night. A complete system typically pays for itself in under one year and delivers substantial savings across its 15+ year lifespan.

Ideal For

• Commercial transport vehicles and long-haul trucks
• Marine vessels and high-demand recreational boats
• RVs and motorhomes requiring maximum autonomy
• Applications requiring SafeCharge alternator integration
• Extreme cold-climate installations with dual self-heating

Ships from Thunder Battery — Canada’s trusted source for premium energy storage solutions.
