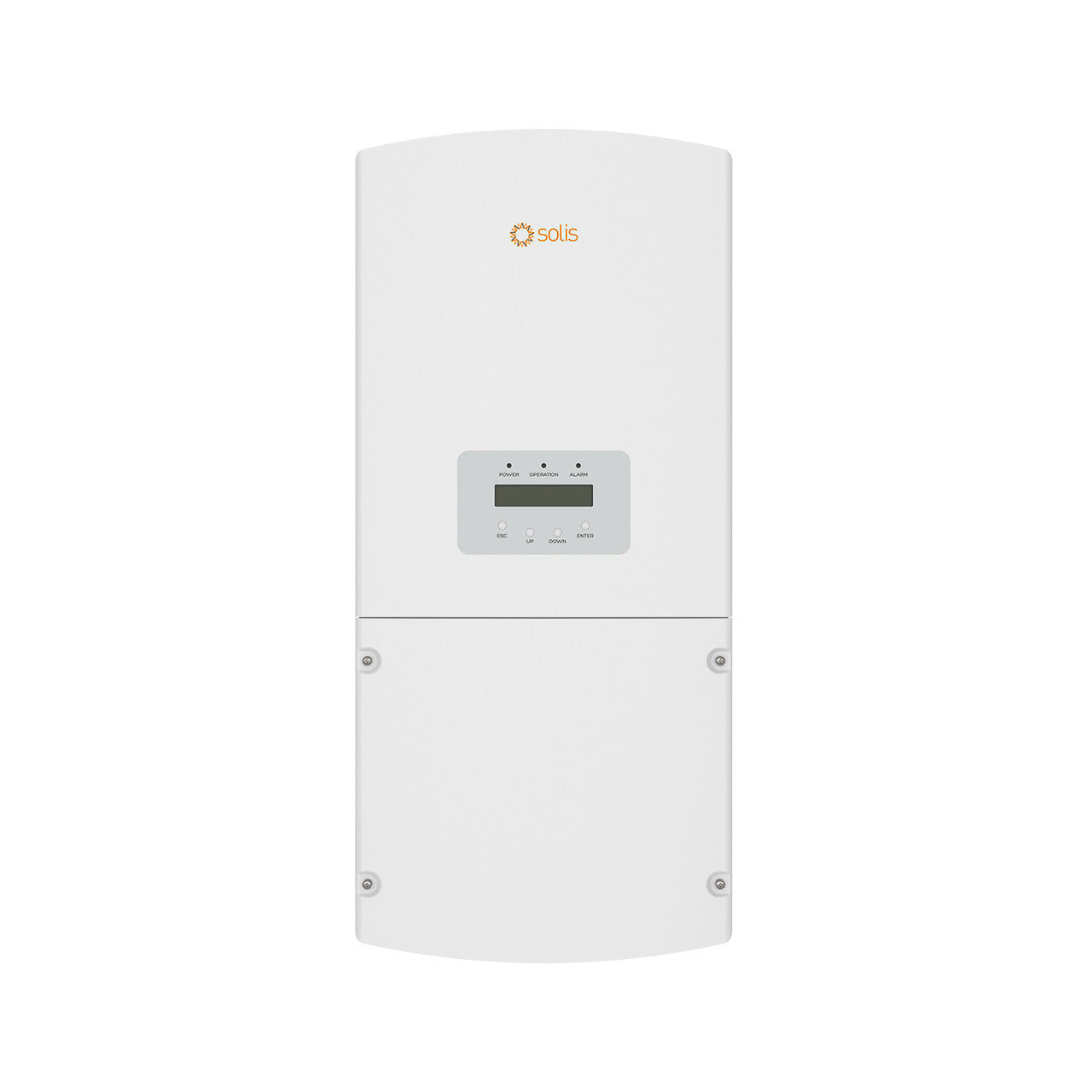

1P-10K-4G-US-APST Solis PV Inverter 4G 10.0kW with APS Transmitter

Solis 1P-10K-4G-US-APST — 10.0kW | Single-Phase PV String Inverter with APS Transmitter

The Solis 1P-10K-4G-US-APST is a 10.0kW single-phase string inverter from the 4th Generation series, designed for residential and light-commercial solar installations. Featuring an integrated APS Transmitter, CA Rule 21 compliance, AFCI protection, and UL 1741-SB certification, it delivers reliable, grid-compliant performance with advanced monitoring capabilities for North American applications.

Key Features

• 10.0kW Output / 120–240V & 120–208V — flexible single-phase output for residential and light-commercial systems
• Integrated APS Transmitter — module-level rapid shutdown transmitter built in
• 97.7% Max Efficiency — fast and dynamic MPPTs with industry-leading DC voltage range; string current up to 14A
• CA Rule 21 Compliant — certified for California advanced inverter requirements
• Module-Level Monitoring Support — granular visibility into individual panel performance
• Optional Built-in Revenue Grade Meter — ANSI C12.20-2010 compliant for utility billing and incentive programs
• SunSpec Protocol — with optional Cellular and WiFi connectivity
• AFCI Protection — proactively reduces arc-fault fire risk
• 10-Year Warranty — with extension options available; dimensions: 333mm × 732mm, weight: 20.7kg

Certifications

• UL 1741-SB
• IEEE 2030.5 (CSIP)
• CA Rule 21

Compatible With

• 120/240V and 120/208V single-phase grid configurations
• Module-level monitoring platforms
• SolisCloud remote monitoring platform
• Optional Revenue Grade Meter (ANSI C12.20-2010)

Contact us for pricing. Ships from Thunder Battery — Canada's trusted battery dealer.
