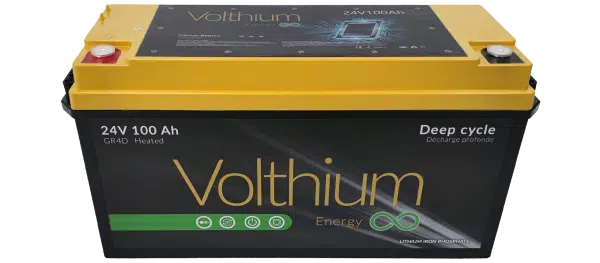

Volthium 24V 100Ah Self-Heating Battery – ABS 4D Format

24V 100Ah Self-Heating Battery – ABS 4D Format

The Volthium 24V 100Ah ABS Self-Heating LiFePO4 battery in 4D format is custom-built for chalets, off-grid homes, and autonomous solar installations. Featuring Grade A+ prismatic cells from the Volkswagen Group, a Texas Instruments BMS programmed by Volthium engineers in Québec, and an exclusive dual self-heating system, it delivers reliable performance in the harshest Canadian winters — discharging to -25°C and recharging to -40°C.

Key Features

• 2.4kWh energy capacity — 24V 100Ah LiFePO4 in a rugged ABS 4D form factor
• 100A continuous / 200A peak (30s) discharge current — reliable output for off-grid solar systems
• 2 RJ45 communication ports — MODBUS and CANbus compatible; connects with Victron, Schneider, Sol-Ark, LuxpowerTek, and more
• IP55 splash-resistant housing — built for demanding environments
• On/Off switch — disable discharge during storage while keeping charge active; eliminates parasitic drain
• Exclusive dual self-heating system — two independent heating systems for total cold-weather reliability:
  • Automatic: activates when charging below 0°C, using charger energy to warm the battery
  • Manual (H+ connector): triggered via the dedicated M6 H+ connector for professional use; operates down to -25°C using the battery’s own energy — use with a timer to prevent unattended operation
• Discharge to -25°C — outperforms competition rated to -20°C
• Recharge to -40°C — enabled by the self-heating system and automotive-grade cell quality
• Cold charging protection — engineered for Canadian climate conditions
• Accessible BMS compartment — reserved access panel for easy servicing and repair
• Vibration-resistant construction — ideal for mobile and remote installations
• Smart Bridge compatible — add Bluetooth monitoring via the Volthium app; set SOC alerts, temperature warnings, and audible/visual alarms
• Grade A+ Volkswagen Group cells — automotive-grade prismatic cells for long-term performance
• Texas Instruments BMS — trusted by NASA and the U.S. military; fully programmed by Volthium engineers in Québec
• 6,000+ cycle lifespan — useful life of 15 years and beyond
• 10-year warranty

Physical Specifications

• Dimensions: 482 × 245 × 170 mm (19 × 9.64 × 6.7 in)
• Weight: 22.67 kg (50 lbs)
• Protection rating: IP55

Certifications

• Complete Assembly: UL1973 & ABYC
• Cells: UL1642, UL1973, IEC62619, IEC62660, CSA UL9540A

Ideal For

• Off-grid chalets, cabins, and autonomous homes on 24V systems
• Solar storage installations in extreme cold climates
• Applications requiring ABYC-compliant monitoring and alerts
• Remote installations where self-heating is critical for year-round operation
