BPP900480100 Ekrano GX Communication Center

Victron Ekrano GX Communication Center

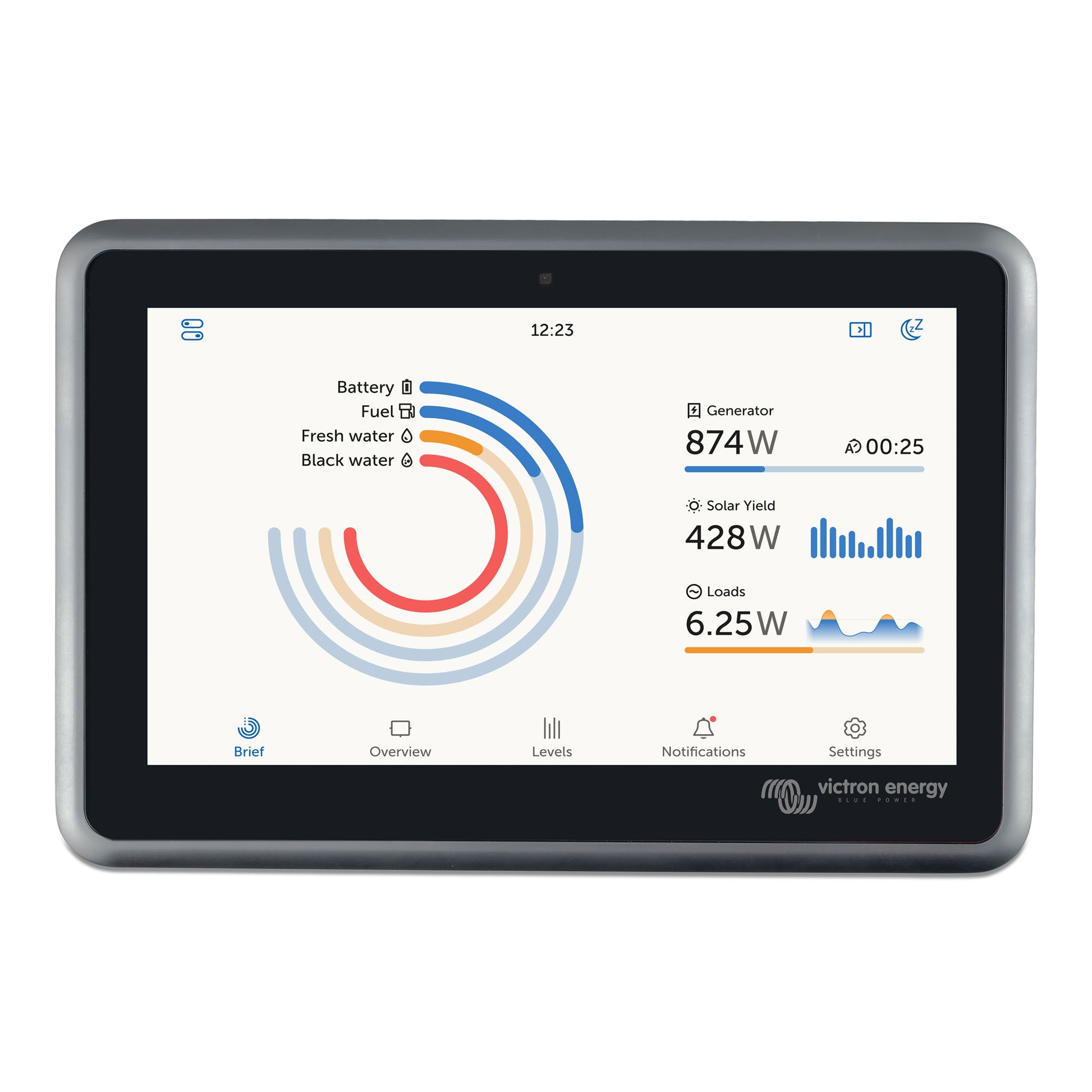

The Victron Ekrano GX is a GX communication and monitoring centre with a built-in 7-inch touchscreen. It brings connected Victron system data into one interface and supports local monitoring through the display and Remote Console, plus remote monitoring and control through the VRM portal when internet connectivity is available.

Key Features

• Built-in 7-inch touchscreen — 1024 × 600 display for local system monitoring and control
• Extensive Victron connectivity — VE.Bus, 3 × VE.Direct, 2 × VE.Can, Ethernet, Wi-Fi, Bluetooth, and USB
• VRM remote monitoring — access system information and supported remote controls through the Victron Remote Management portal
• DVCC support — supports distributed voltage and current control in compatible systems
• Generator control — programmable relay functions support compatible generator start/stop applications
• Built-in Bluetooth — intended for initial connection and basic network configuration; it is not used to connect directly to other Victron products

Specifications

• Display: Built-in 7-inch touchscreen, 1024 × 600
• VE.Direct ports: 3
• VE.Bus: 1 bus with 2 parallel RJ45 sockets
• VE.Can: 2 ports/buses (one isolated, one non-isolated)
• USB host ports: 2 × USB-A
• Networking: Ethernet, Wi-Fi, Bluetooth
• Power supply: 8–70V DC
• Operating temperature: −20°C to +50°C

Ideal For

• Off-grid solar and battery systems
• Marine vessel energy management
• Hybrid grid/solar/generator installations
• Victron systems requiring centralized monitoring and control

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
