BPR000220400 Low Voltage Disconnect (LVD) BatteryProtect BP-220 12/24V 220A

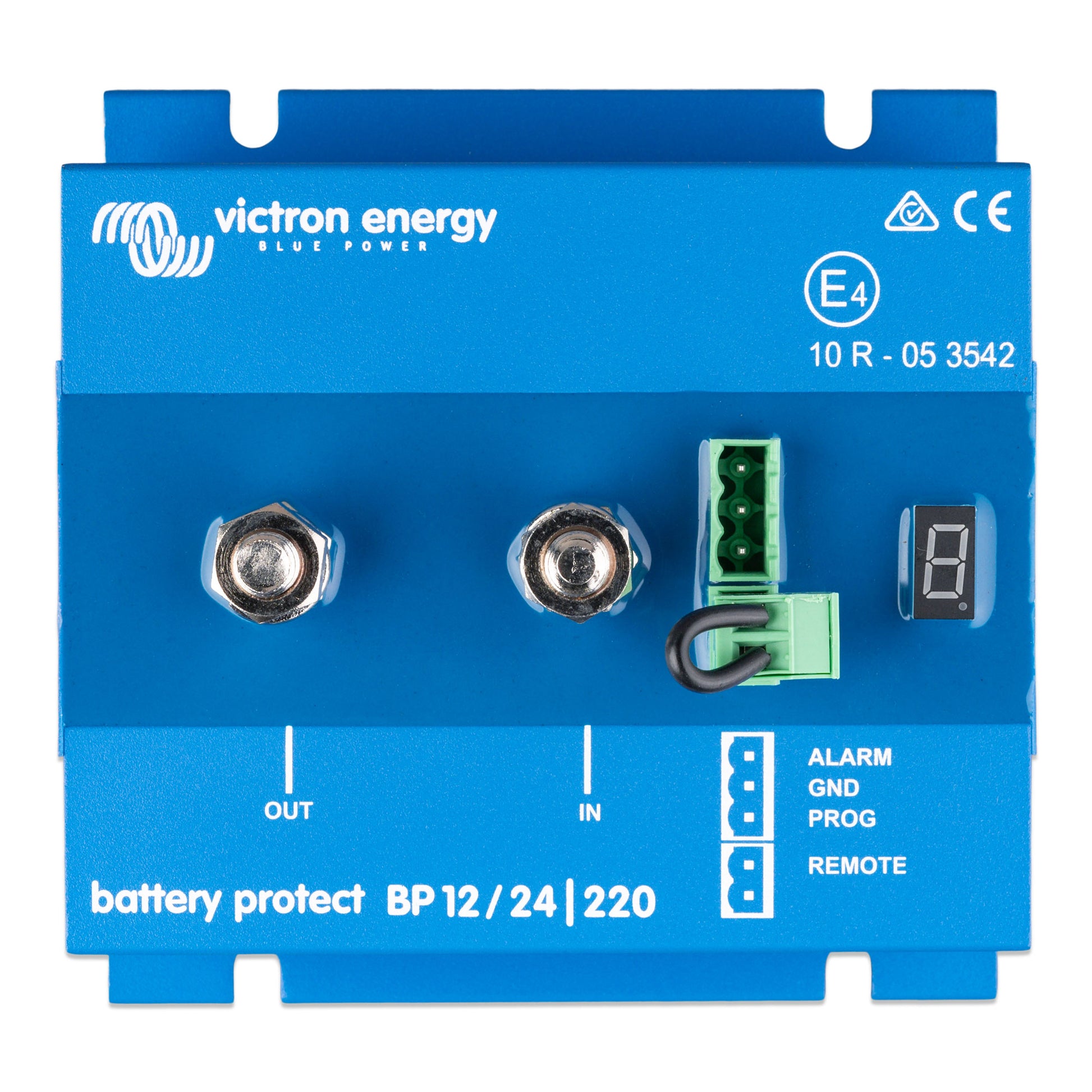

Victron BatteryProtect BP-220 12/24V 220A Low Voltage Disconnect

The Victron BatteryProtect BP-220 is a high-current low voltage disconnect (LVD) device designed to protect 12V and 24V battery banks from damaging over-discharge. With a 220A continuous current rating, it automatically disconnects DC loads when battery voltage drops below a programmable threshold — preserving battery life and preventing irreversible damage. Suitable for a wide range of off-grid, marine, and industrial applications.

Key Features

• 220A continuous current rating — handles high-current DC loads
• 12V and 24V compatible — versatile for a wide range of systems
• Programmable disconnect voltage — customizable low voltage threshold
• Automatic reconnect — reconnects loads when battery voltage recovers
• Remote on/off control — can be controlled via external signal
• Compact design — easy to install in tight spaces

Specifications

• System voltage: 12V or 24V
• Max continuous current: 220A
• Disconnect voltage: Programmable
• Reconnect voltage: Programmable
• Quiescent current: <1mA

Ideal For

• Off-grid solar battery systems
• Marine and yacht 12V/24V electrical systems
• Industrial and commercial battery banks
• Any 12V or 24V system requiring over-discharge protection

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
