BPR048100400 Low Voltage Disconnect (LVD) BatteryProtect BP 48-100 48V 100A

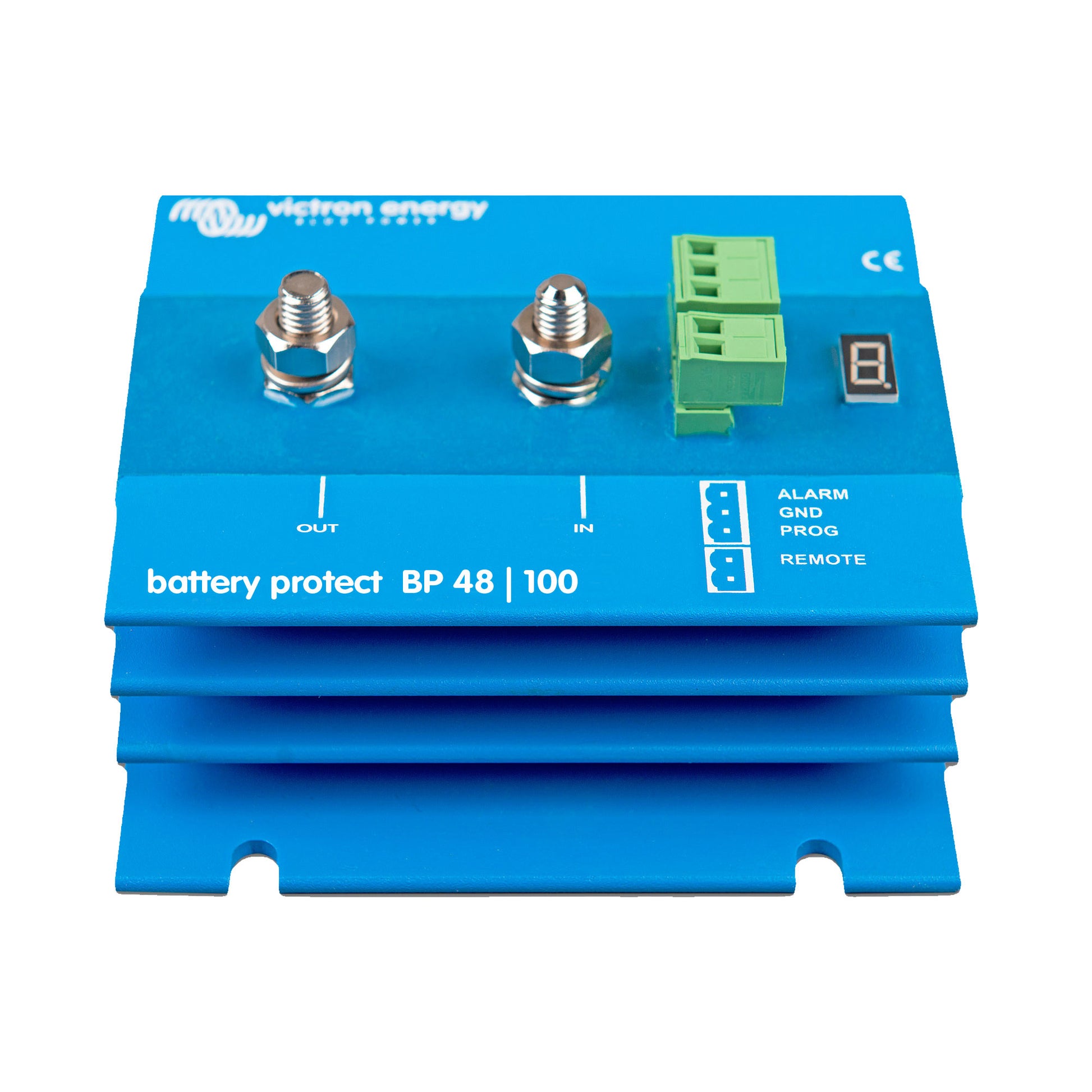

Victron BatteryProtect BP 48-100 48V 100A Low Voltage Disconnect

The Victron BatteryProtect BP 48-100 is an intelligent low voltage disconnect (LVD) device designed to protect 48V battery banks from damaging over-discharge. When battery voltage drops below a programmable threshold, it automatically disconnects DC loads — preserving battery life and preventing irreversible damage. With a 100A continuous current rating, it is suitable for a wide range of off-grid, marine, and industrial applications.

Key Features

• 100A continuous current rating — handles high-current DC loads
• 48V system compatible — designed for 48V battery banks
• Programmable disconnect voltage — customizable low voltage threshold
• Automatic reconnect — reconnects loads when battery voltage recovers
• Remote on/off control — can be controlled via external signal
• Compact design — easy to install in tight spaces

Specifications

• System voltage: 48V
• Max continuous current: 100A
• Disconnect voltage: Programmable
• Reconnect voltage: Programmable
• Quiescent current: <1mA

Ideal For

• Off-grid solar battery systems
• Marine and yacht 48V electrical systems
• Industrial and commercial 48V battery banks
• Any 48V system requiring over-discharge protection
