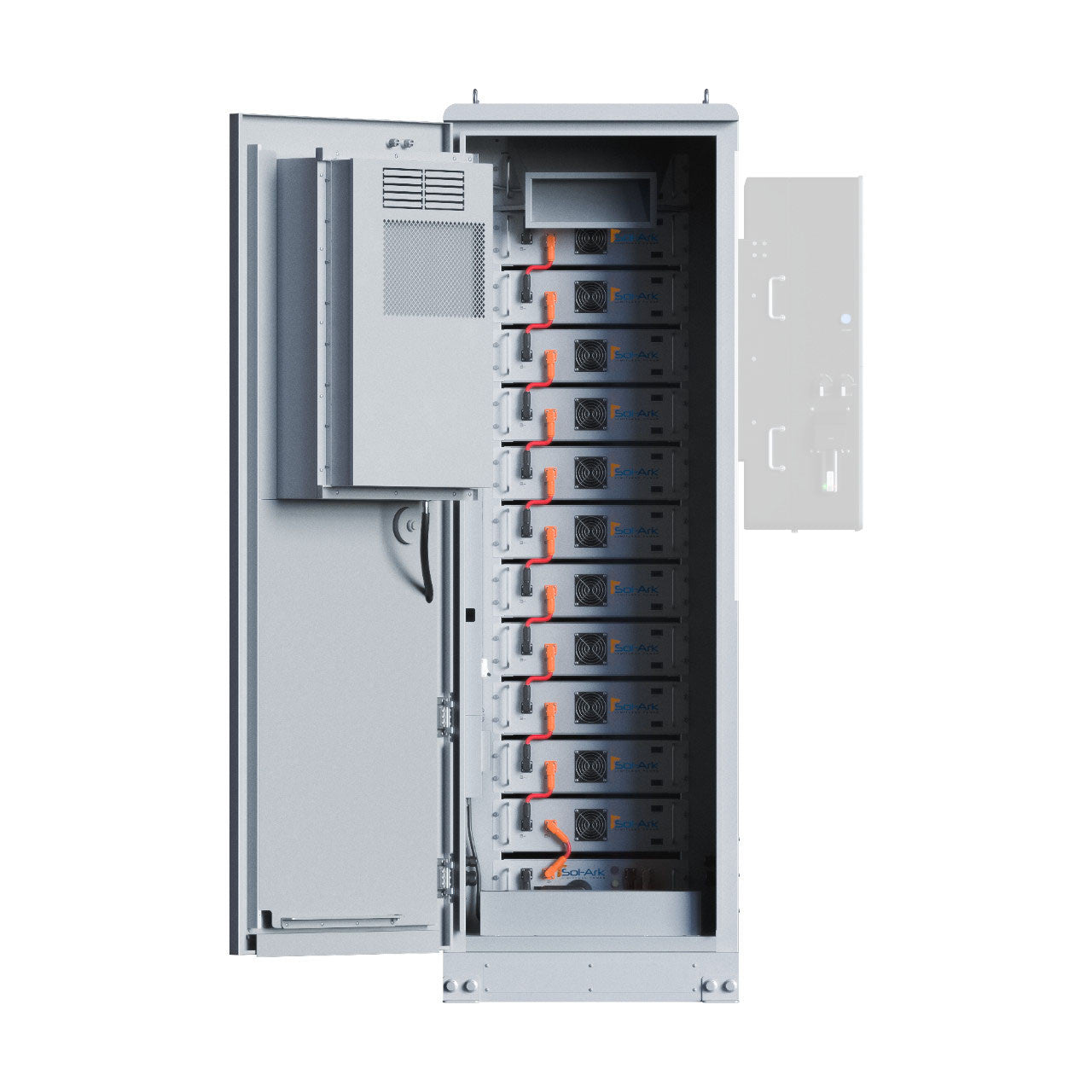

Sol-Ark L3-HVR-60 Outdoor Battery — 60kWh High-Voltage ESS

The Sol-Ark L3-HVR-60 is a 60kWh high-voltage lithium battery system designed for outdoor installation and compatible with the Sol-Ark SA-30K and SA-60K commercial inverters. With UL1973 and UL9540/A certification, CAN2.0/RS485 communication, and a 10-year warranty, it delivers reliable, weatherproof energy storage for large residential and commercial solar installations.

Key Features

• 61.44kWh usable energy — large-capacity storage for extended backup
• Outdoor-rated enclosure — weatherproof design for exterior installation
• 614.4V nominal (588–672V DC) — high-voltage architecture for efficiency
• CAN2.0/RS485 communication — integrates with Sol-Ark inverter systems
• Compatible with SA-30K and SA-60K — purpose-matched for Sol-Ark commercial inverters
• UL1973 & UL9540/A certified — meets North American safety standards
• 10-year warranty — long-term reliability assurance

Specifications

• Energy: 61.44kWh
• Voltage: 614.4V DC (588–672V range)
• Capacity: 100Ah
• Communication: CAN2.0 / RS485
• Compatible inverters: SA-30K, SA-60K
• Dimensions: 89” H × 29.9” W (2260 × 760mm)
• Weight: 950 lbs (431 kg)
• Certifications: UL1973, UL9540/A
• Warranty: 10 years

Ideal For

• Outdoor commercial and large residential solar + storage systems
• Sol-Ark SA-30K and SA-60K inverter installations
• Demand charge reduction and peak shaving applications
• Microgrids requiring weatherproof battery enclosures
