LYN020102010 Lynx Power In (M10)

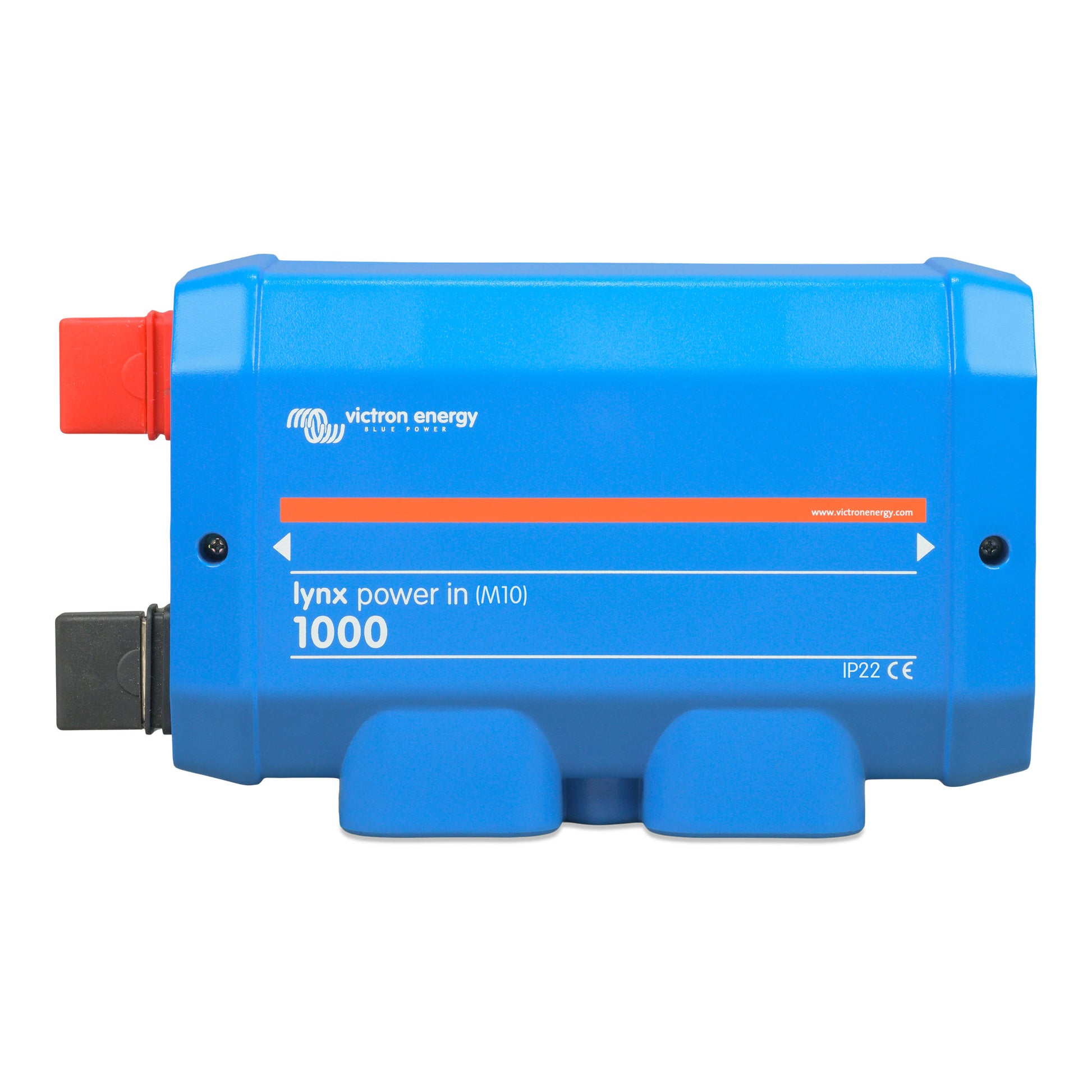

Victron Lynx Power In (M10)

The Victron Lynx Power In is a DC busbar module designed for use within the Victron Lynx system. It provides a central connection point for batteries and DC power sources. On the M10 version, M10 refers to the interconnection joints between Lynx modules; battery, load, and charger cable connections use M8 cable lugs. The Lynx Power In is the foundation of a Lynx system build, enabling clean and organized high-current DC distribution alongside other Lynx modules such as the Lynx Distributor and Lynx Shunt.

Key Features

• M10 Lynx interconnection joints — connects directly to other M10 Lynx modules; DC cable connections use M8 lugs
• Lynx system compatible — designed for use with Lynx Distributor, Lynx Shunt, and Lynx BMS
• Clean DC distribution — organized, modular power distribution for large systems
• High-current rated — suitable for large battery banks and inverter systems
• Compact modular design — bolts to compatible M10 Lynx modules to form a continuous busbar

Specifications

• Inter-module busbar connection: M10; DC cable lugs: M8
• Compatible with: Lynx Distributor, Lynx Shunt VE.Can, Lynx BMS
• Operating voltage range: 9–60V DC
• Continuous current rating: 1000A DC

Ideal For

• Large off-grid solar battery systems
• Marine and yacht high-current DC distribution
• Victron Lynx system builds
• Industrial and commercial energy storage installations
