LYN060404010 Lynx Class-T Power In (M10)

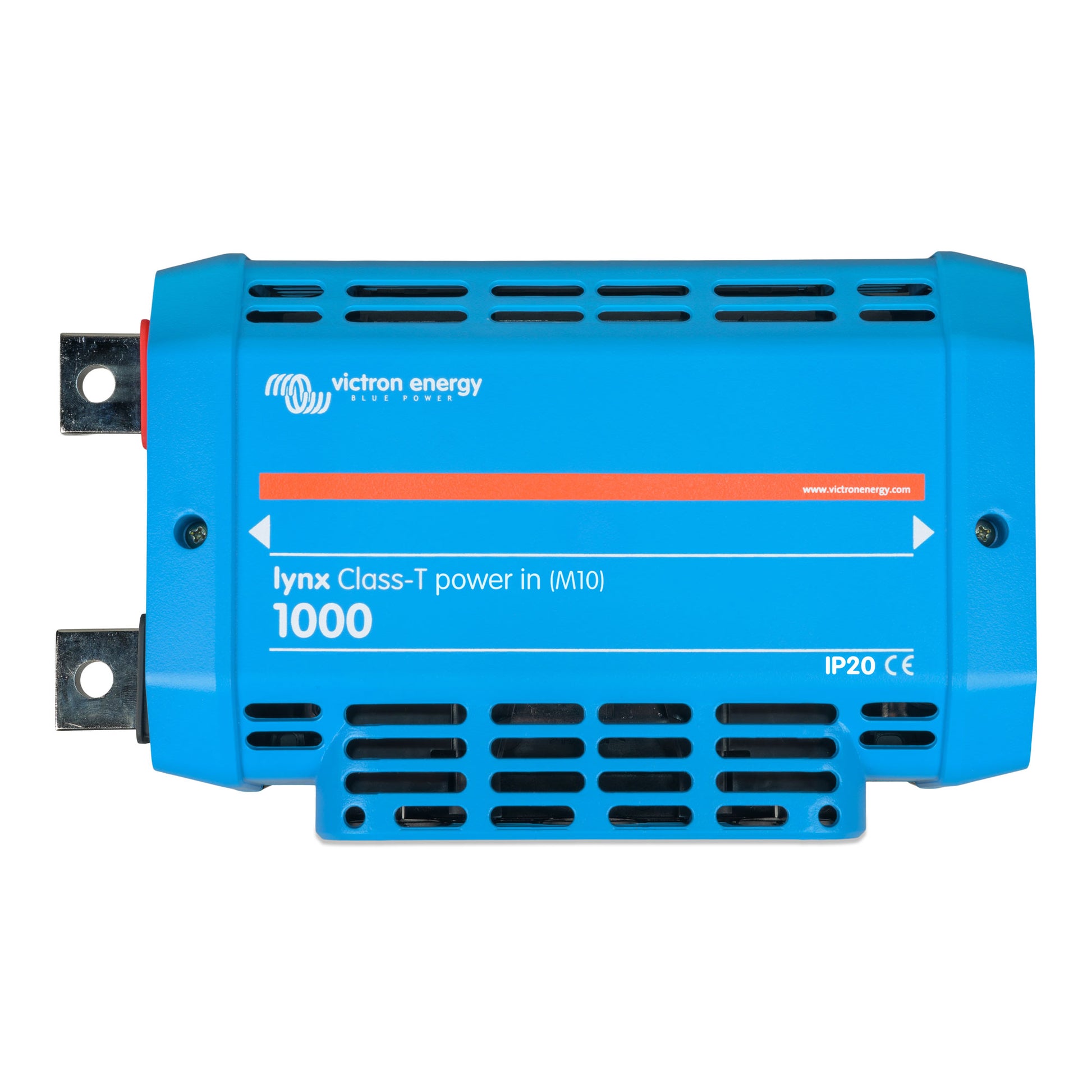

Victron Lynx Class-T Power In (M10)

The Victron Lynx Class-T Power In is a DC busbar module with positions for two Class-T fuses, designed for use within the Victron Lynx system. It provides fused connection points for up to two lithium battery strings using M10 DC cable connections; the required Class-T fuses are purchased separately. Ideal for large off-grid, marine, and industrial Lynx system builds where safety and reliability are paramount.

Key Features

• Two Class-T fuse positions — provides fused connections for up to two lithium battery strings; fuses are sold separately
• M10 busbar terminals — secure, low-resistance connections for high-current systems
• Lynx system compatible — designed for use with Lynx Distributor, Lynx Shunt, and Lynx BMS
• Clean DC distribution — organized, modular power distribution for large systems
• Compact modular design — bolts to compatible M10 Lynx modules to form a continuous busbar

Specifications

• Connection: M10 busbar
• Fuse positions: 2 × Class-T (fuses sold separately)
• Compatible with: Lynx Distributor, Lynx Shunt VE.Can, Lynx BMS
• Operating voltage range: 9–60V DC
• Continuous current rating: 1000A DC

Ideal For

• Large off-grid solar battery systems requiring fuse protection
• Marine and yacht high-current DC distribution
• Victron Lynx system builds requiring Class-T fusing
• Industrial and commercial energy storage installations

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
