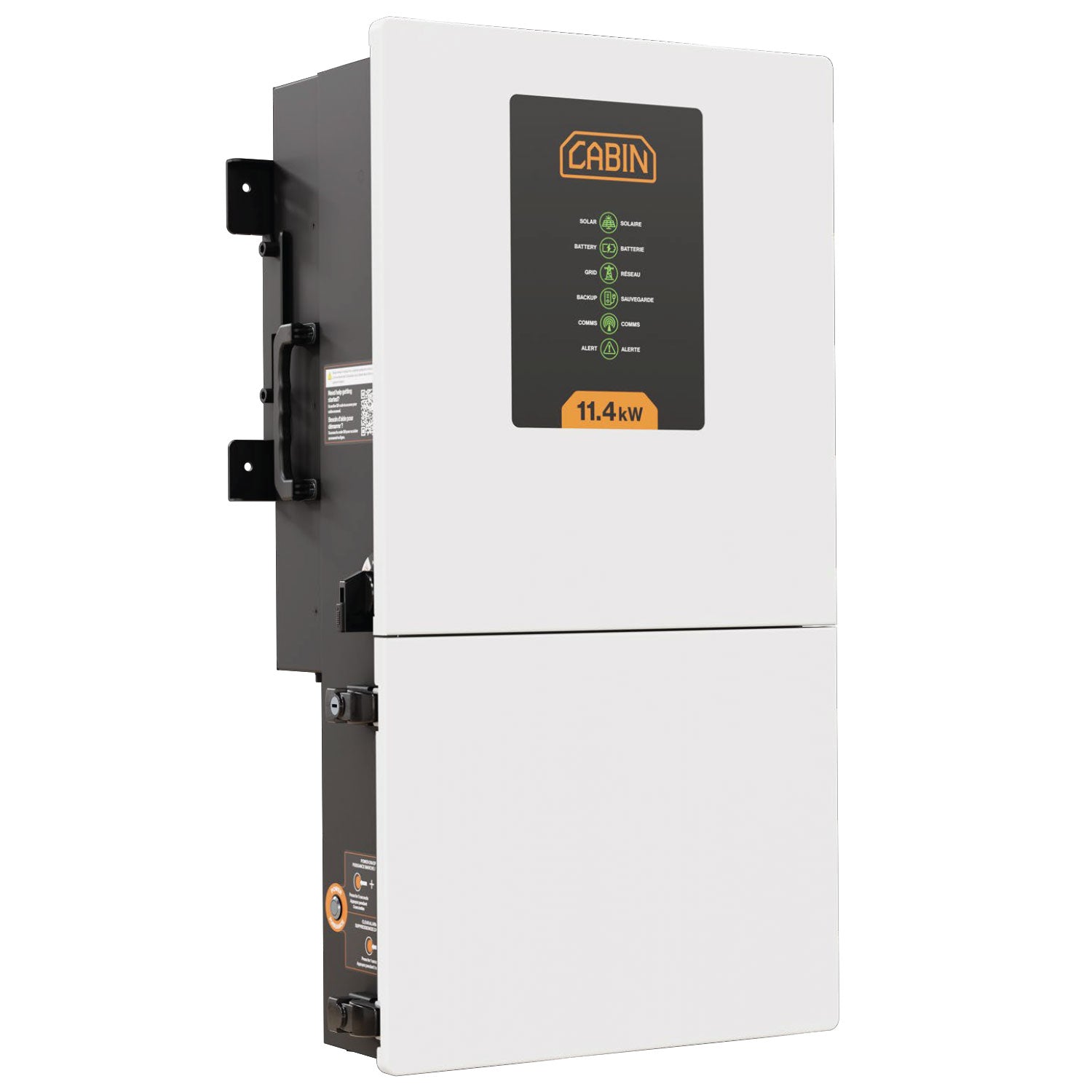

M02671 Cabin Apex E-Series 11.4kW Indoor Home Backup Hybrid Inverter

Cabin M02671 Apex E-Series 11.4kW Indoor Home Backup Hybrid Inverter

The Cabin Apex E-Series M02671 is an 11.4kW hybrid inverter designed for residential, cottage, and light commercial backup power. It intelligently manages energy from solar panels, the grid, or a generator — directing power to your battery and automatically switching to stored energy during an outage. Pair with one or more Apex E-Series batteries (M02673, sold separately) to build a complete, grid-independent backup solution installed indoors by any licensed electrician.

Key Features

• 11.4kW / 11,400W Output — delivers up to 47.5A at 240V for whole-home backup capability
• Hybrid Architecture — manages solar, grid, and generator input simultaneously
• Automatic Outage Switchover — seamlessly transfers to battery backup when the grid goes down
• Time-of-Use Optimization — charge during off-peak rates, discharge during peak to reduce energy costs
• Scalable Design — add additional inverters to increase total output capacity
• Solar Ready — capture and store solar surplus for overnight use or extended outages
• Generator Compatible — charge from any portable generator during prolonged outages
• Remote Monitoring — real-time system status and performance via mobile app
• Indoor Installation — no concrete pad, gas fitter, or specialized trades required
• 10-Year Warranty — engineered for long-term residential deployment
• Certified — UL 1741, UL 1741 SA, UL 1741 SB, UL 1741 CRD-PCS, UL 1741 Multimode, UL 1699B, CSA C22.2 107.1, CSA C22.2 No. 330, CSIP, UL 9540

Specifications

• Output Power: 11.4kW (11,400W)
• Voltage: 120/240V, 120/208V
• Max Output Current: 47.5A @ 240V
• Chemistry Compatibility: LiFePO4
• Colour: White
• Height: 31.5" / 800mm
• Width: 16.5" / 420mm
• Weight: 40.0 kg
• Part Number: M02671
• Certifications: UL 1741, UL 1699B
• Warranty: 10 years

Compatible With

• Cabin M02673 Apex E-Series 16kWh Indoor Battery (sold separately)
• Additional Apex E-Series inverters for expanded output
• Solar PV arrays, grid connection, and portable generators
• Provincial and utility clean energy incentive programs (check local eligibility)

Contact us for pricing and availability. Ships from Thunder Battery — Canada's trusted energy storage dealer.
