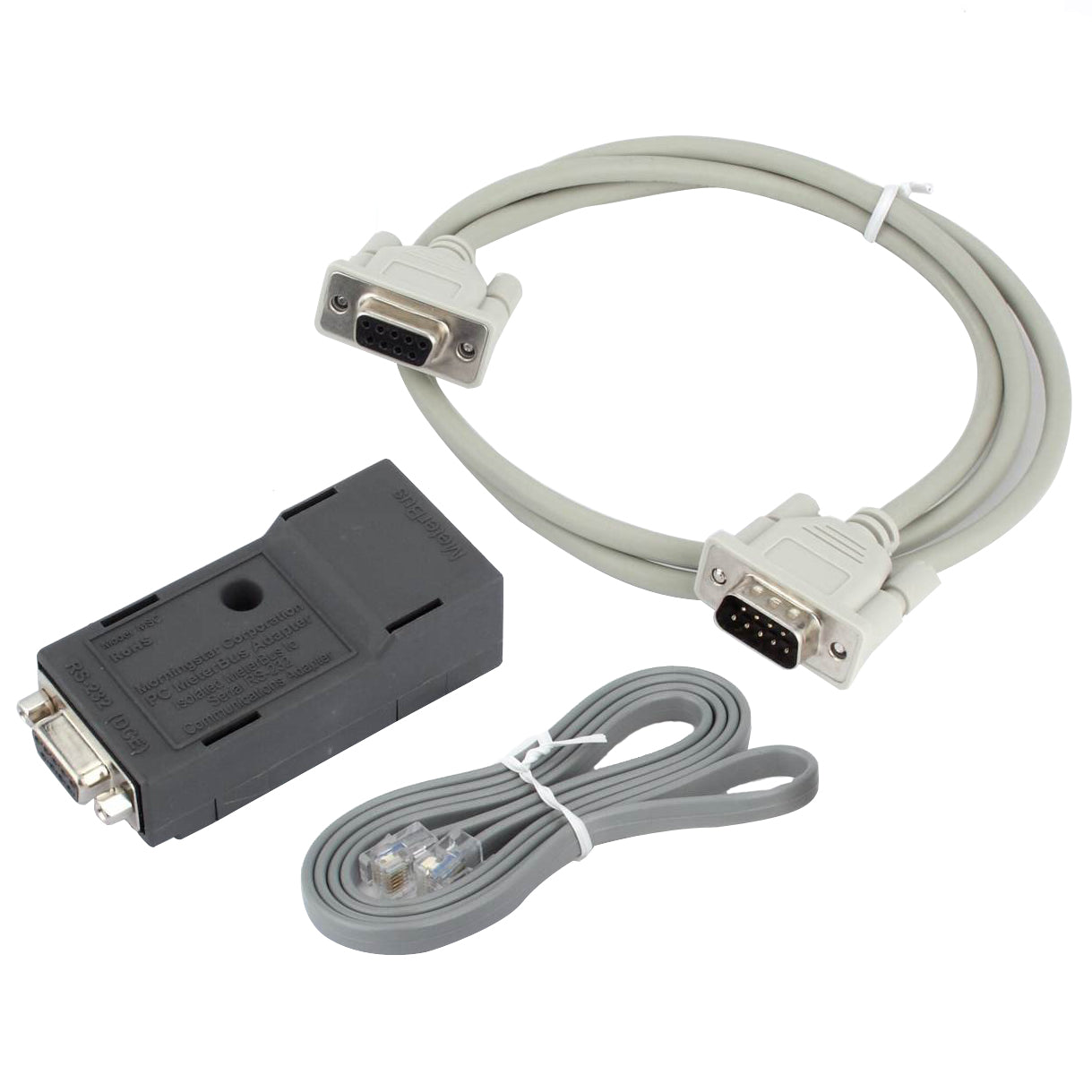

MSC Morningstar PC MeterBus Adapter RS-232 DB9 to RJ-11

Morningstar PC MeterBus Adapter MSC (RS-232 DB9 to RJ-11)

The Morningstar MSC PC MeterBus Adapter enables direct communication between a PC and Morningstar solar charge controllers via a standard RS-232 serial connection. Using a DB9 to RJ-11 cable, it connects to the MeterBus port on compatible Morningstar controllers, allowing full monitoring, configuration, and data logging via Morningstar's free MSView PC software.

Key Features

• RS-232 DB9 to RJ-11 connection — connects PC serial port to Morningstar MeterBus
• MSView compatible — enables full monitoring, configuration, and data logging via PC
• Compatible with TriStar, ProStar, and SunSaver MPPT — works across Morningstar product lines
• Simple plug-in installation — no drivers required for RS-232 connection

Ideal For

• Morningstar controller installations requiring PC-based monitoring
• Data logging and system configuration via MSView
• Off-grid solar installations with RS-232 PC access
• Any Morningstar MeterBus-equipped controller

Ships from Thunder Battery — Canada's trusted solar equipment dealer.
