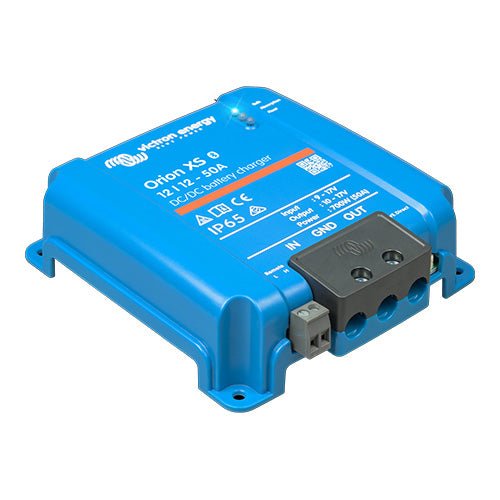

ORI121217050 Orion XS 12/12-50A DC-DC Battery Charger

Victron Orion XS 12/12-50A DC-DC Battery Charger

The Victron Orion XS 12/12-50A is a compact, high-efficiency non-isolated DC-DC battery charger for 12V dual-battery systems. Input and output current can be configured from 1A to 50A, and charging settings can be managed through VictronConnect using built-in Bluetooth.

Key Features

• Up to 50A charge current
• 700W at 14V / 600W at 12V — power depends on operating voltage
• 9–17V input range
• 10–17V adjustable output range
• Maximum efficiency: 98.5%
• Built-in Bluetooth and VE.Direct
• Non-isolated design

Specifications

• Product number: ORI121217050
• Input voltage range: 9–17V DC
• Output voltage adjustment range: 10–17V DC
• Input/output current setting range: 1–50A
• Continuous output power: 700W at 14V; 600W at 12V
• Maximum efficiency: 98.5%
• Communication: Bluetooth Smart, VE.Direct
• Operating temperature: -20°C to +60°C, with derating above 40°C

Important: The charger is not protected against reversed battery polarity. Verify polarity before connecting power.
