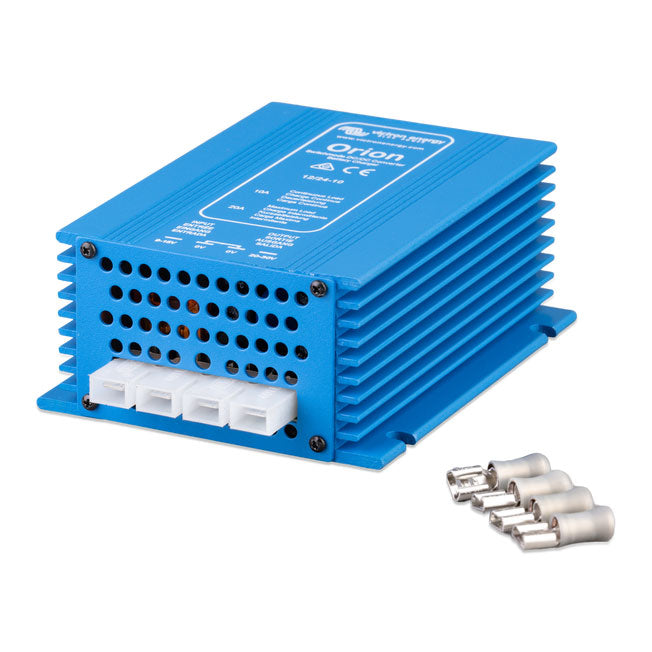

ORI122410020 Orion 12/24-10 DC-DC converter IP20

Victron Orion-Tr 12/24-10A Isolated DC-DC Converter

Need to power 24V equipment from a 12V battery bank — with complete electrical isolation? The Victron Orion-Tr 12/24-10A steps up from 12V to 24V at 240W continuous output, with full galvanic isolation to protect your electronics and eliminate ground loops. Whether you're integrating 24V winches, thrusters, or control systems into a 12V marine or RV setup, this converter delivers clean, reliable 24V power without compromise.

Key Features

• 240W continuous output — 12V input to isolated 24V output at 10A
• Galvanic isolation — eliminates ground loops, protects sensitive electronics
• Wide input voltage range — compatible with 12V lead-acid and lithium battery systems
• Adjustable output voltage — fine-tune to match your 24V load requirements
• High efficiency — up to 93%, minimal heat generation
• Compact, robust housing — easy to install in tight spaces
• Remote on/off — simple integration with system controllers

Specifications

• Input voltage: 9.5–17V DC
• Output voltage: 24V (adjustable)
• Output current: 10A
• Output power: 240W
• Isolation: Yes (galvanic)
• Efficiency: Up to 93%
• Operating temperature: -40°C to +60°C

Ideal For

• Powering 24V equipment from 12V marine and RV systems
• Bow thrusters, windlasses, and 24V accessories on 12V vessels
• Off-grid vehicles requiring isolated 24V power
• Solar systems with mixed 12V/24V loads
