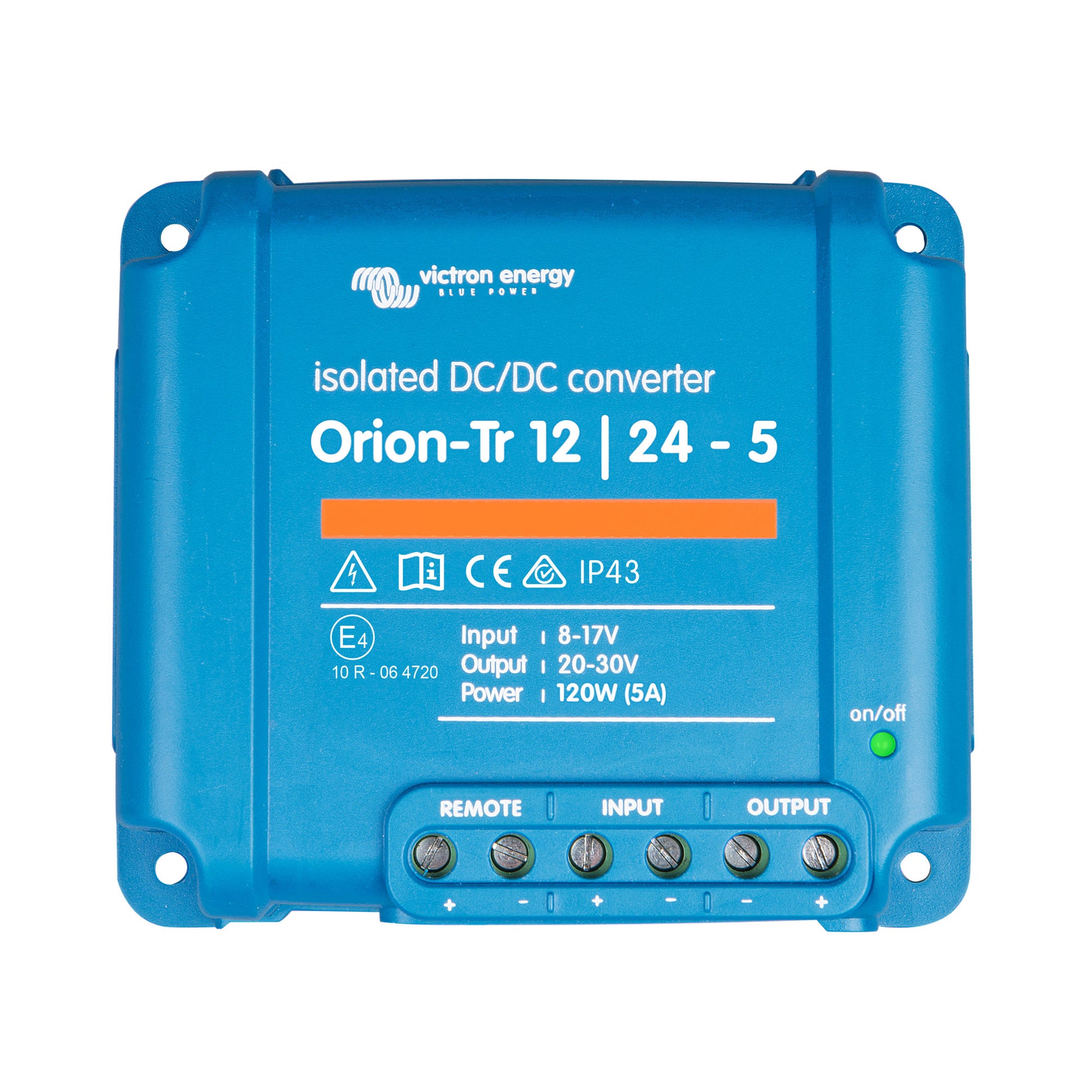

ORI122410110 Orion-Tr 12/24-5A (120W) Isolated DC-DC converter

Victron Orion-Tr 12/24-5A (120W) Isolated DC-DC Converter

The Victron Orion-Tr 12/24-5A (120W) is a galvanically isolated DC-DC converter for powering DC loads at a different system voltage while keeping the input and output electrically separated. Its adjustable output, remote on/off connection, and rugged construction make it suitable for marine, vehicle, off-grid, telecom, and industrial DC power systems.

Key Features

• Galvanic isolation — 200V DC between input, output, and case
• Adjustable output voltage — 18–30V DC
• Continuous output — 5A at nominal output voltage (120W)
• Efficiency — 88%
• Remote on/off — supports low-current remote control
• Operating temperature — -20°C to +55°C, with derating above 40°C

Specifications

• Product number: ORI122410110
• Input voltage range: 8–17V DC
• Nominal output voltage: 24.2V DC
• Output voltage adjustment range: 18–30V DC
• Continuous output current: 5A at 25°C
• Continuous output power: 120W
• Efficiency: 88%
• Isolation: Galvanic
• Operating temperature: -20°C to +55°C

Battery-charging note: This Orion-Tr converter is intended for DC-DC power conversion. Victron recommends the Orion-Tr Smart charger range for battery-charging applications.
