ORI122420020 Orion 12/24-20 DC-DC Converter IP20 Non-Isolated

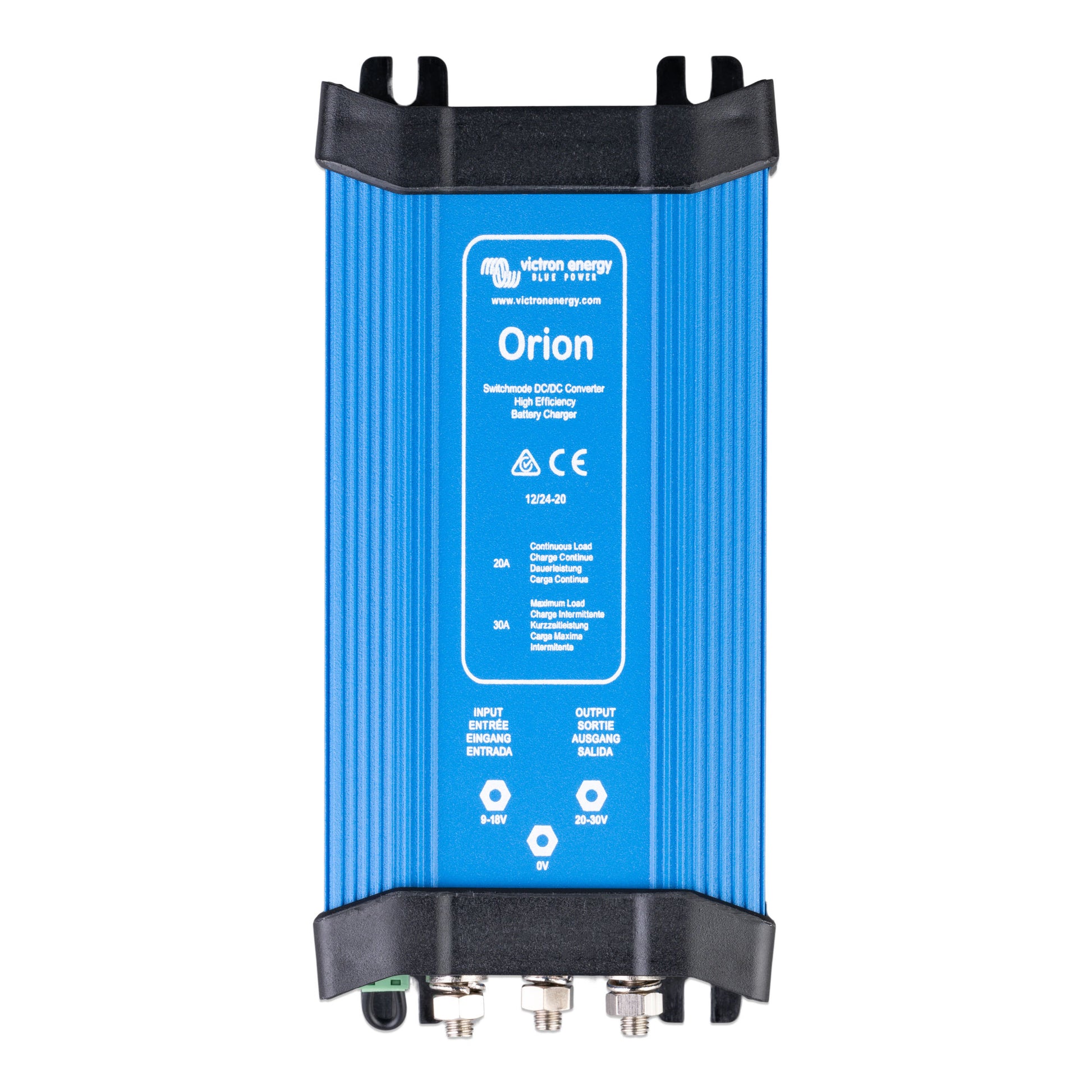

Victron Orion 12/24-20 DC-DC Converter IP20 Non-Isolated

The Victron Orion 12/24-20 is a reliable non-isolated DC-DC converter that steps up 12V input to 24V output at 20A. Designed for off-grid, vehicle, and industrial applications where galvanic isolation is not required, it efficiently powers 24V loads from a 12V source. The IP20 rating makes it suitable for protected indoor and panel-mount installations.

Key Features

• 20A output current — efficient 12V to 24V step-up conversion
• Non-isolated design — efficient power conversion for systems without isolation requirements
• IP20 rated — suitable for protected indoor and panel-mount installations
• Wide input voltage range — compatible with standard 12V systems
• Robust construction — built for reliable continuous operation

Specifications

• Input voltage: 12V
• Output voltage: 24V
• Max output current: 20A
• Max output power: 480W
• Protection rating: IP20
• Isolation: Non-isolated

Ideal For

• Off-grid systems requiring 24V loads from a 12V source
• Vehicle and mobile installations with 24V accessories
• Industrial panel-mount DC power conversion
• Systems where galvanic isolation is not required

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
