ORI122436140 Orion-Tr Smart 12/24-15A (360W) Non-isolated DC-DC charger

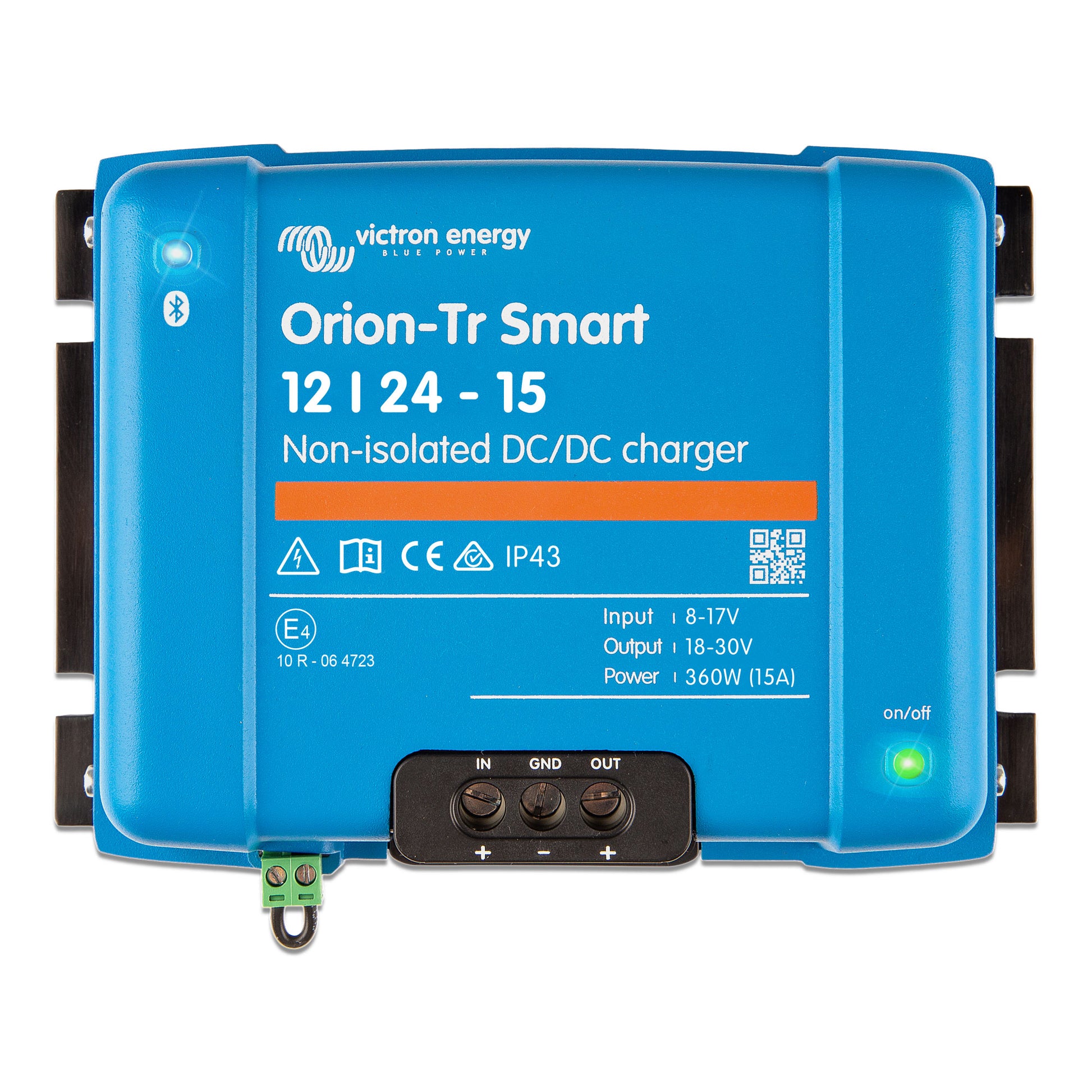

Victron Orion-Tr Smart 12/24-15A (360W) Non-Isolated DC-DC Charger

The Victron Orion-Tr Smart 12/24-15A Non-Isolated is an intelligent DC-DC charger that steps up 12V input to 24V output at 15A (360W). Designed for dual-battery marine, RV, and off-grid systems where galvanic isolation is not required, it delivers smart multi-stage charging for lithium and lead-acid batteries. Built-in Bluetooth enables easy configuration and monitoring via the VictronConnect app.

Key Features

• 360W output power — efficient 12V to 24V step-up charging
• 15A output current — reliable charging for 24V secondary battery banks
• Non-isolated design — efficient power conversion for systems without isolation requirements
• Built-in Bluetooth — configure and monitor via VictronConnect app
• Smart adaptive charging — multi-stage charging for lithium and lead-acid batteries

Specifications

• Input voltage: 12V
• Output voltage: 24V (adjustable)
• Max output current: 15A
• Max output power: 360W
• Communication: Bluetooth (VictronConnect)
• Isolation: Non-isolated
• Protection: reverse polarity, over-temperature, short circuit

Ideal For

• Dual-battery marine and RV systems requiring 24V from a 12V source
• Off-grid solar installations with mixed voltage battery banks
• Vehicles requiring 24V accessories from a 12V source
• Systems where galvanic isolation is not required

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
