ORI241205260 Orion IP67 24/12 5A DC-DC Converter

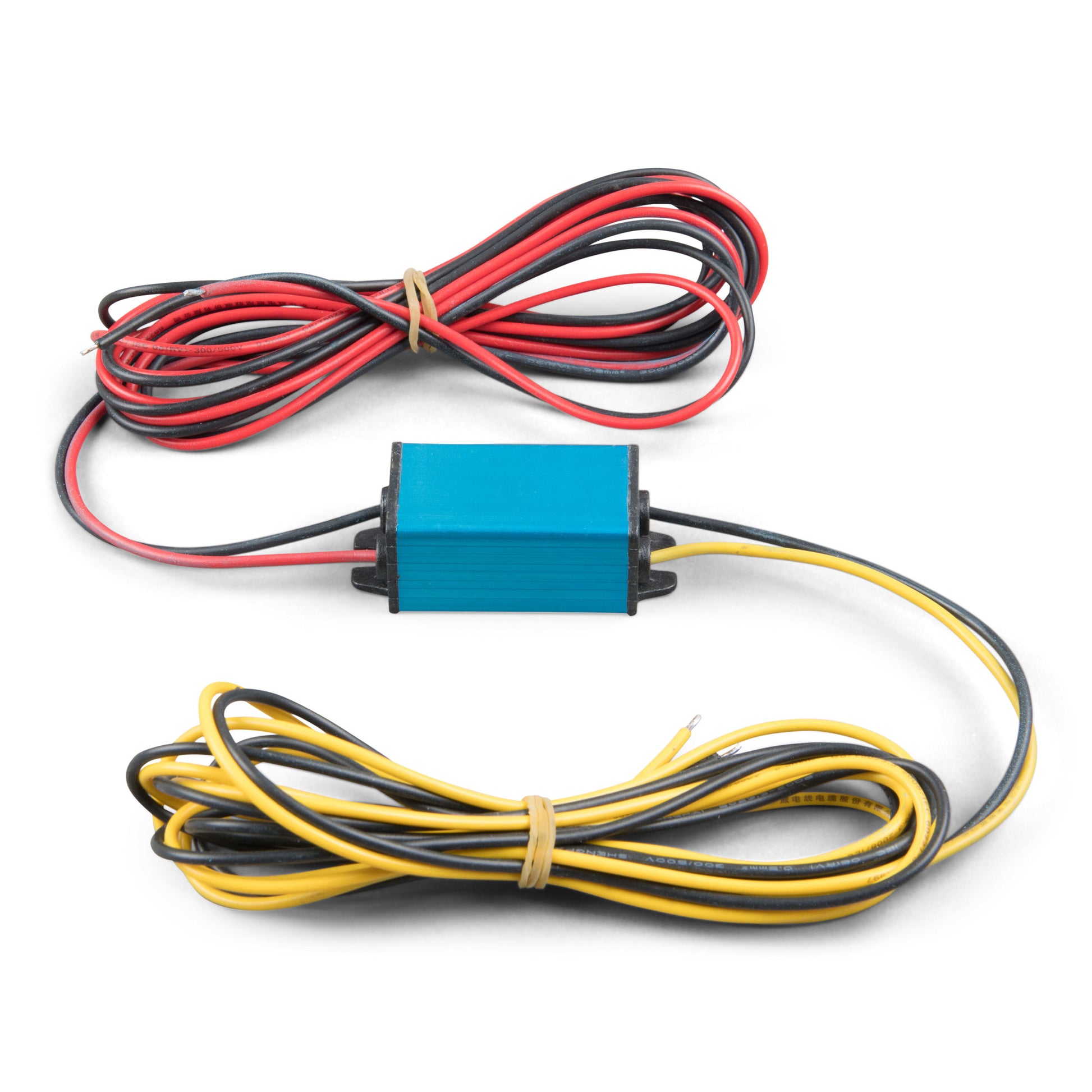

Victron Orion IP67 24/12-5A Waterproof DC-DC Converter

When your installation demands a converter that can handle the elements, the Victron Orion IP67 24/12-5A delivers. Fully sealed to IP67 standards — dustproof and waterproof to 1 metre — this compact DC-DC converter steps down from 24V to 12V at 5A with confidence in the harshest marine, outdoor, and vehicle environments. Mount it in the bilge, under a hood, or in an exposed equipment bay and trust it to keep running.

Key Features

• IP67 waterproof rating — dustproof and submersible to 1 metre, ideal for marine and outdoor use
• 24V to 12V step-down — 5A output for powering 12V accessories from a 24V system
• Non-isolated design — efficient power conversion for shared-ground systems
• Wide input voltage range — compatible with 24V lead-acid and lithium battery systems
• High efficiency — minimal heat generation, no fan required
• Compact, sealed housing — easy to install in tight or exposed locations
• No external connections required — simple wired installation

Specifications

• Input voltage: 15–35V DC
• Output voltage: 12V
• Output current: 5A
• IP rating: IP67
• Operating temperature: -40°C to +60°C

Ideal For

• Marine vessels requiring waterproof 12V power from 24V systems
• Outdoor and exposed vehicle installations
• Agricultural and construction equipment with 24V systems and 12V accessories
• Bilge, engine bay, and underhood installations

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
