ORI241220260 Orion IP67 24/12 20A DC-DC Converter

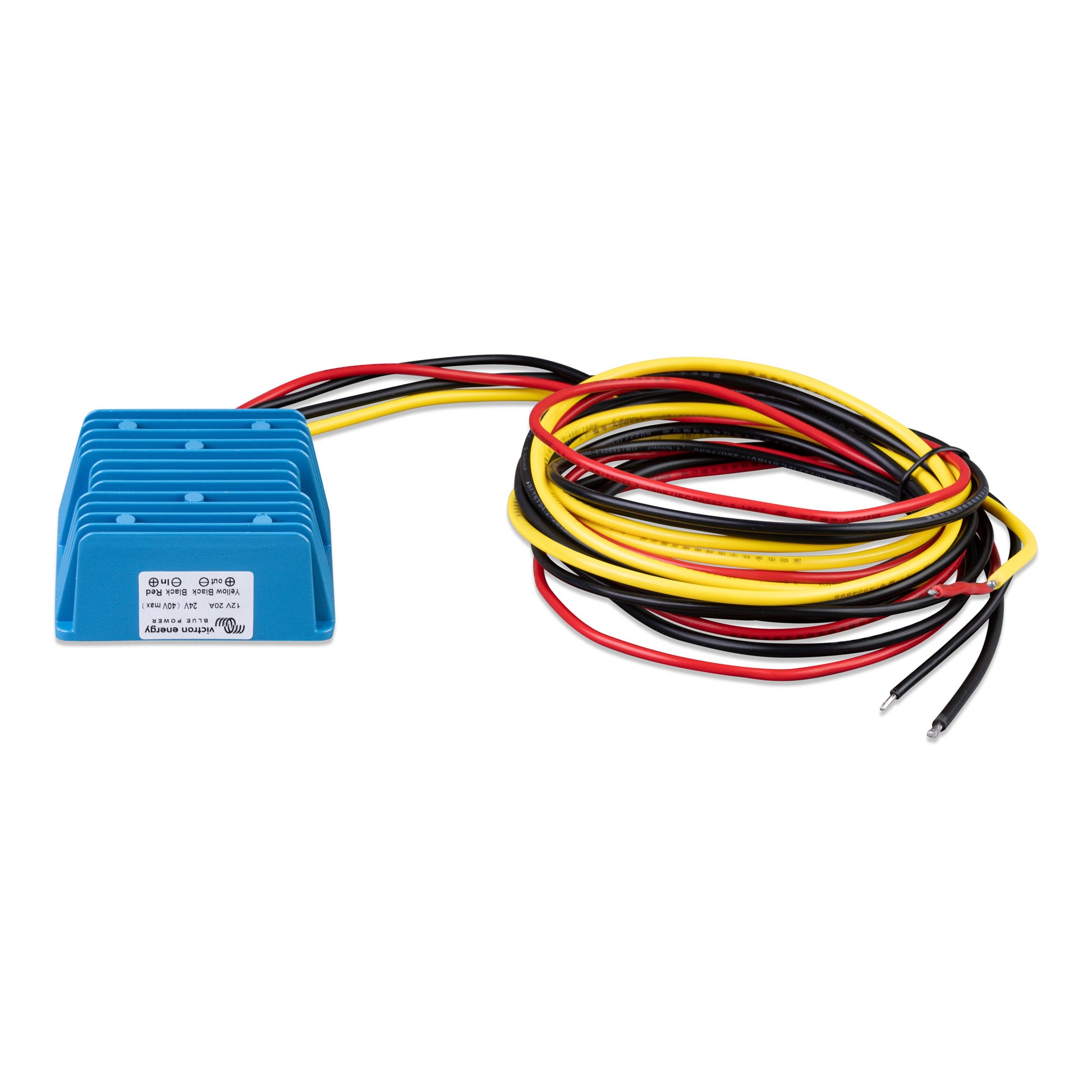

Victron Orion IP67 24/12-20A DC-DC Converter

For high-current 12V loads in wet or exposed environments, the Victron Orion IP67 24/12-20A is the converter you can count on. Delivering 240W of continuous step-down power from a 24V source, it's fully sealed to IP67 standards — dust-tight and waterproof to 1 metre immersion. Whether it's mounted in a marine engine bay, an outdoor enclosure, or an exposed RV compartment, this converter keeps your 12V systems running reliably no matter what the environment throws at it.

Key Features

• IP67 waterproof rating — fully sealed against dust and water immersion up to 1 metre
• 240W continuous output — 24V input to 12V at 20A
• Non-isolated design — efficient power conversion for shared-ground systems
• Wide input voltage range — compatible with 24V lead-acid and lithium battery systems
• High efficiency — minimal heat generation for reliable long-term operation
• Compact, rugged housing — ideal for tight, exposed, or wet installation locations

Specifications

• Input voltage: 20–35V DC
• Output voltage: 12V
• Output current: 20A
• Output power: 240W
• Protection rating: IP67
• Isolation: Non-isolated
• Operating temperature: -40°C to +60°C

Ideal For

• High-draw 12V accessories in marine engine bays and wet lockers
• Outdoor off-grid and solar installations
• RV and campervan exposed mounting locations
• Agricultural and industrial equipment requiring 12V power

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
