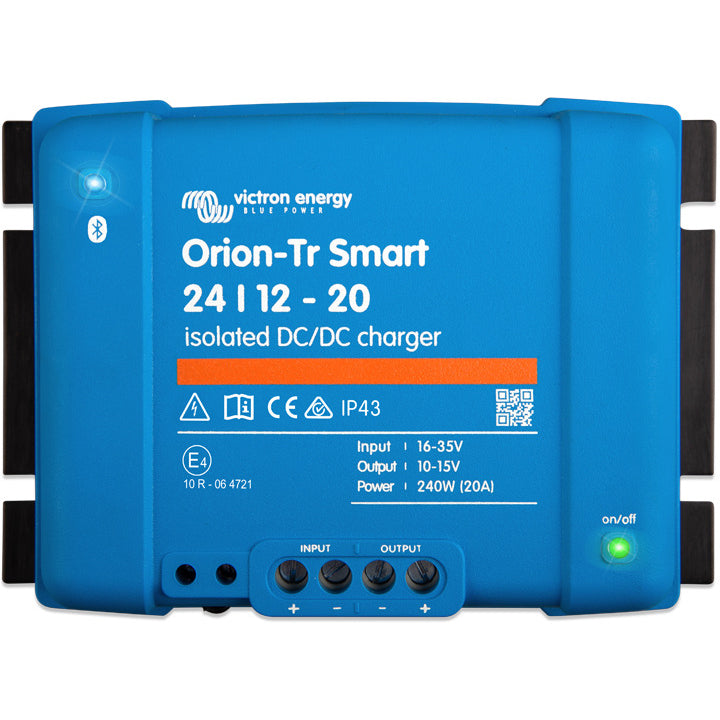

ORI241224120 Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC Charger

Victron Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC Charger

The Victron Orion-Tr Smart 24/12-20A is an intelligent isolated DC-DC charger that steps down 24V input to 12V output at 20A (240W). Designed for dual-battery marine, RV, and off-grid systems, it provides galvanic isolation between battery banks and smart multi-stage charging for lithium and lead-acid batteries. Built-in Bluetooth enables easy configuration and monitoring via the VictronConnect app.

Key Features

• 240W output power — efficient 24V to 12V step-down charging
• 20A output current — reliable charging for 12V secondary battery banks
• Isolated output — galvanic isolation protects sensitive electronics
• Built-in Bluetooth — configure and monitor via VictronConnect app
• Smart adaptive charging — multi-stage charging for lithium and lead-acid batteries

Specifications

• Input voltage: 24V
• Output voltage: 12V (adjustable)
• Max output current: 20A
• Max output power: 240W
• Communication: Bluetooth (VictronConnect)
• Protection: reverse polarity, over-temperature, short circuit

Ideal For

• Dual-battery marine and RV systems with 24V main and 12V auxiliary banks
• Off-grid solar installations with mixed voltage battery banks
• Vehicles requiring isolated 12V charging from a 24V source
• Systems requiring galvanic isolation between voltage levels
