ORI241240110 Orion-Tr 24/12-30A (360W) Isolated DC-DC converter

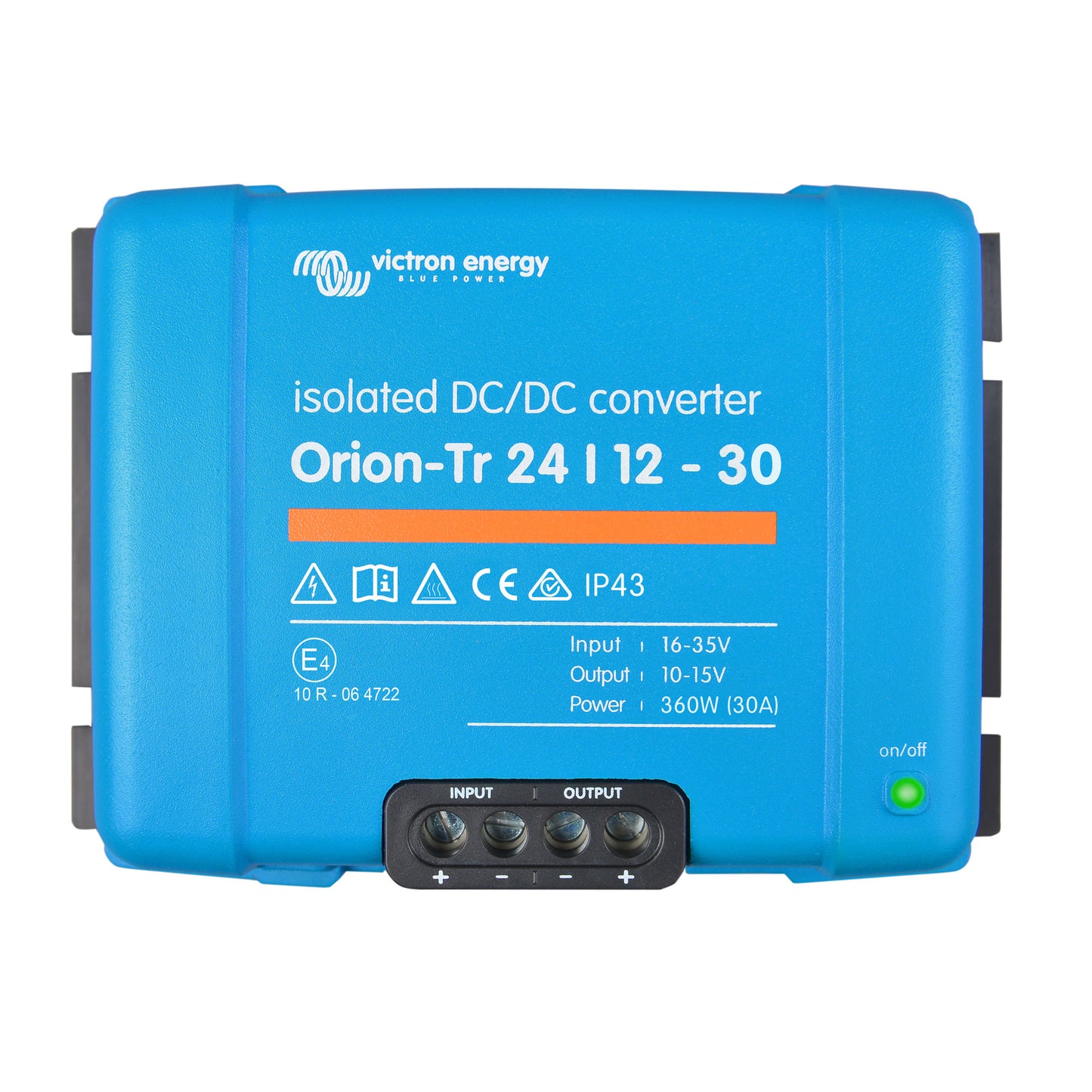

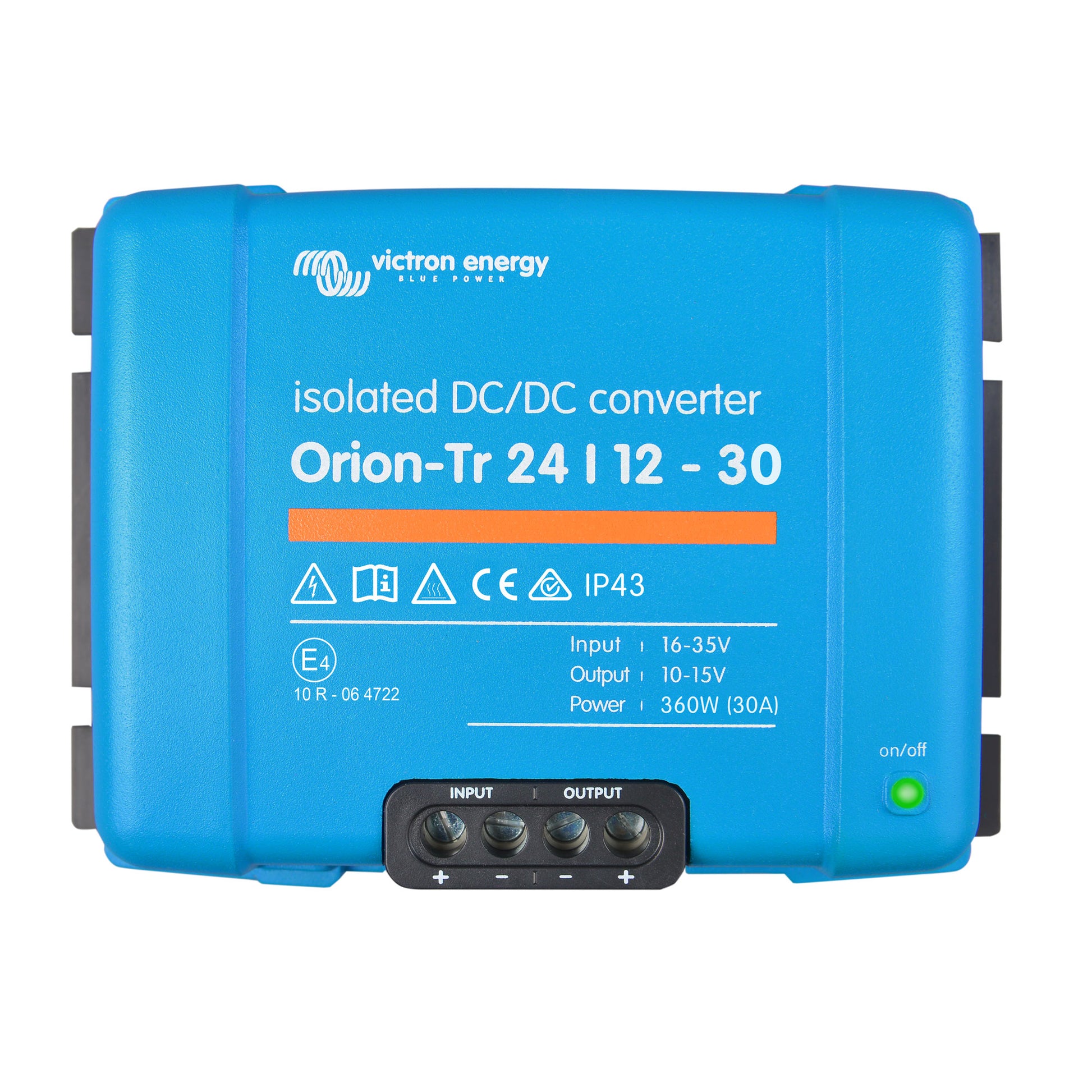

Victron Orion-Tr 24/12-30A (360W) Isolated DC-DC Converter

The Victron Orion-Tr 24/12-30A (360W) is a galvanically isolated DC-DC converter for powering DC loads at a different system voltage while keeping the input and output electrically separated. Its adjustable output, remote on/off connection, and rugged construction make it suitable for marine, vehicle, off-grid, telecom, and industrial DC power systems.

Key Features

• Galvanic isolation — 200V DC between input, output, and case
• Adjustable output voltage — 10–15V DC
• Continuous output — 30A at nominal output voltage (360W)
• Efficiency — 88%
• Remote on/off — supports low-current remote control
• Operating temperature — -20°C to +55°C, with derating above 40°C

Specifications

• Product number: ORI241240110
• Input voltage range: 16–35V DC
• Nominal output voltage: 12.2V DC
• Output voltage adjustment range: 10–15V DC
• Continuous output current: 30A at 40°C
• Continuous output power: 360W
• Efficiency: 88%
• Isolation: Galvanic
• Operating temperature: -20°C to +55°C

Battery-charging note: This Orion-Tr converter is intended for DC-DC power conversion. Victron recommends the Orion-Tr Smart charger range for battery-charging applications.

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
