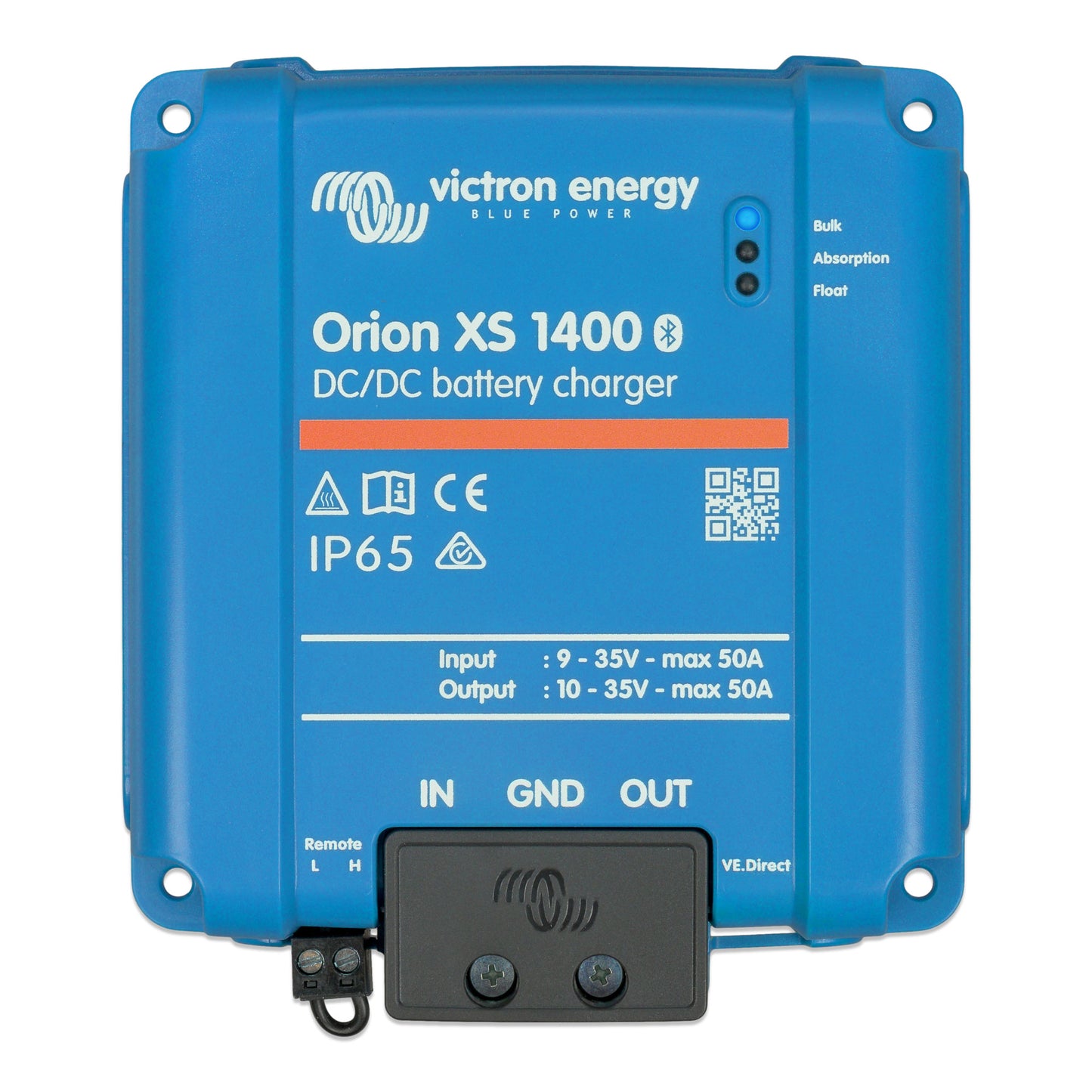

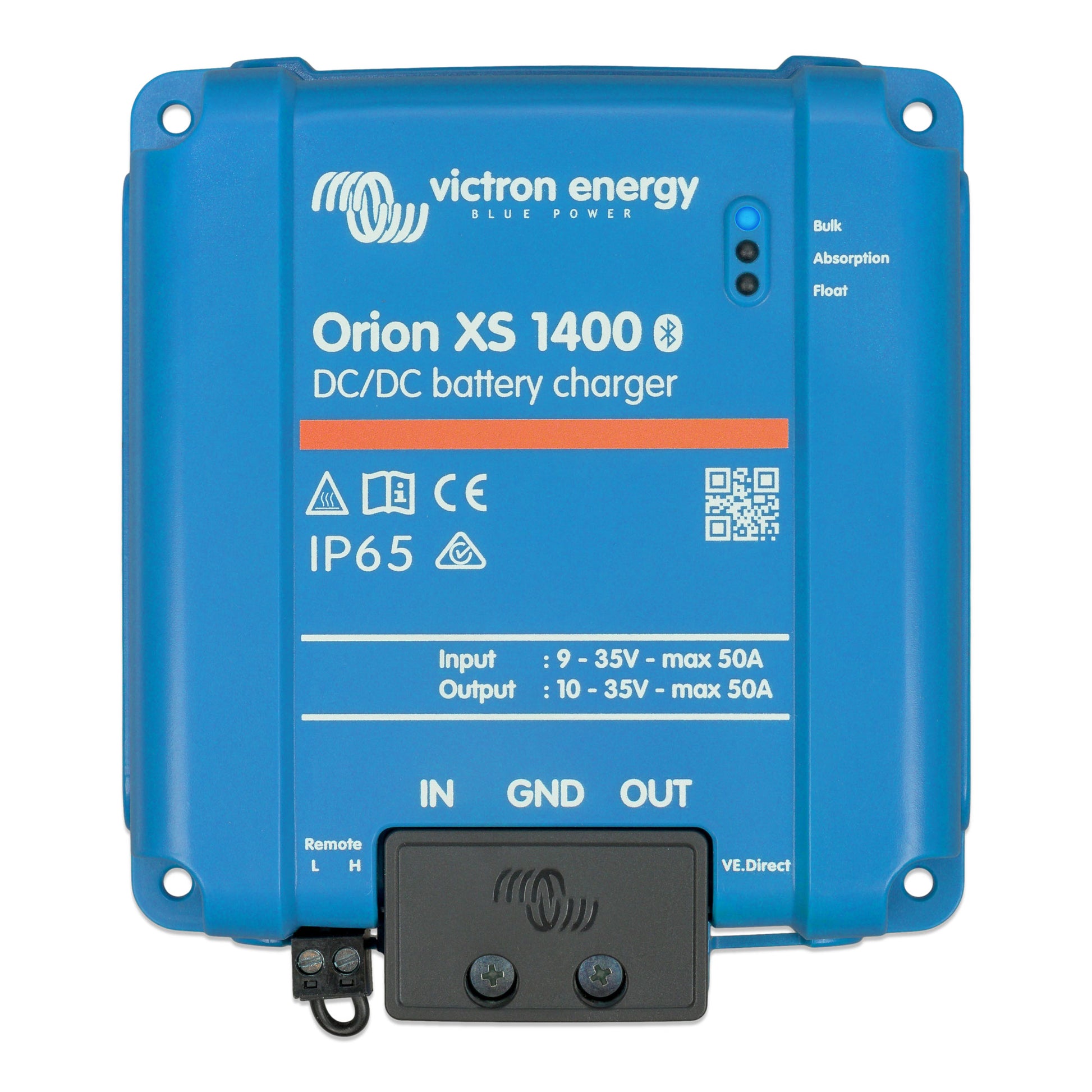

ORI242417040 Orion XS 1400 DC-DC Battery Charger

Victron Orion XS 1400 DC-DC Battery Charger

The Victron Orion XS 1400 is a high-power, non-isolated DC-DC battery charger with a 9–35V input range and adjustable 10–35V output. This wide voltage range allows it to support 12/12V, 12/24V, 24/12V, and 24/24V charging systems. Built-in Bluetooth and VE.Direct provide configuration, monitoring, and integration with the Victron ecosystem.

Key Features

• Up to 1400W continuous output up to 40°C
• 9–35V input range
• 10–35V adjustable output range
• 1–50A configurable input and output current
• Supports 12/12, 12/24, 24/12, and 24/24 systems
• Maximum efficiency: 98.5%
• Built-in Bluetooth and VE.Direct
• Non-isolated design

Specifications

• Product number: ORI242417040
• Input voltage range: 9–35V DC
• Output voltage adjustment range: 10–35V DC
• Input/output current setting range: 1–50A
• Continuous output power: up to 1400W
• Maximum efficiency: 98.5%
• Communication: Bluetooth Smart, VE.Direct
• Operating temperature: -20°C to +60°C, with derating above 40°C

Important: The charger is not protected against reversed battery polarity. Verify polarity before connecting power.
