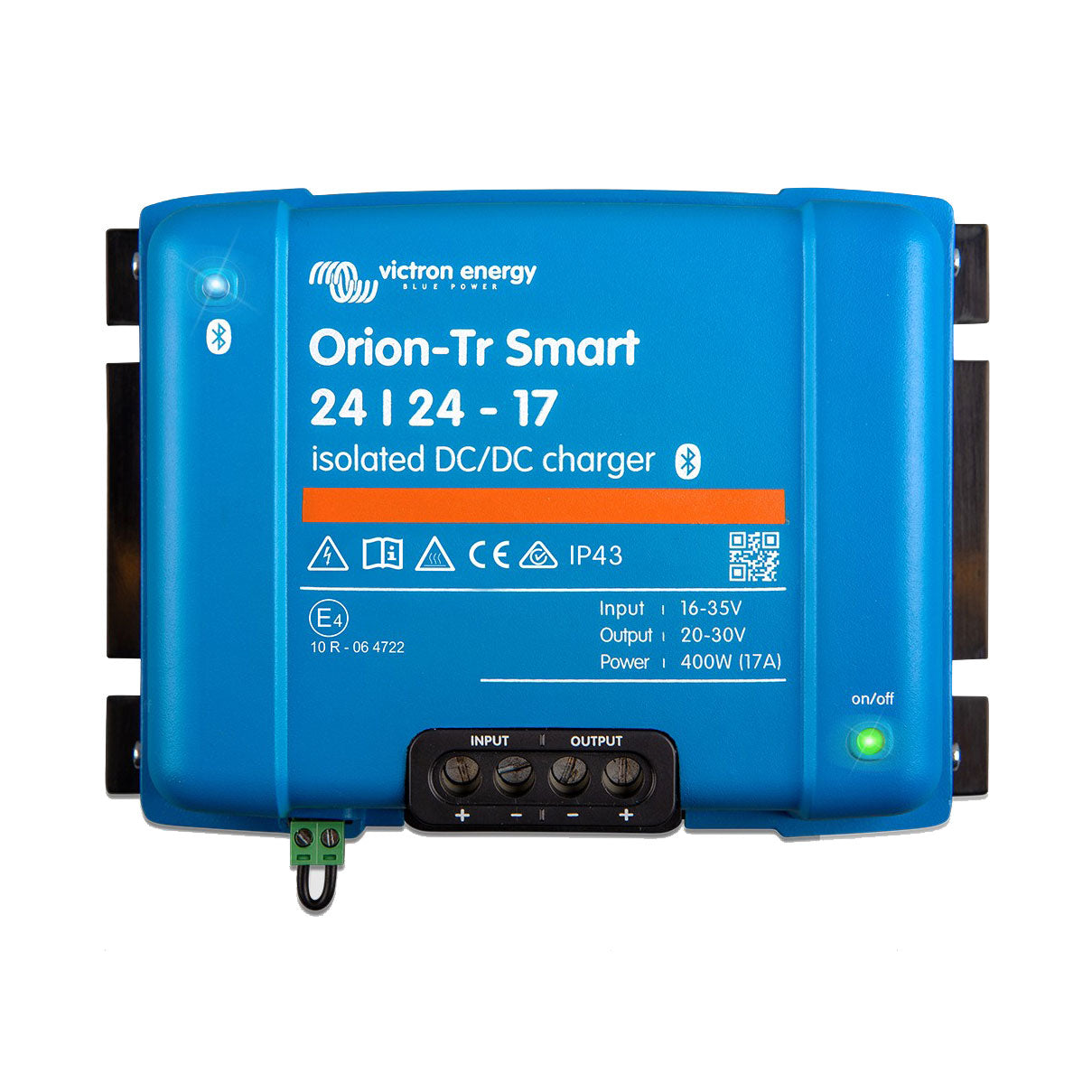

ORI242440120 Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC charger

Victron Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC Charger

The Victron Orion-Tr Smart 24/24-17A is an intelligent isolated DC-DC charger delivering 17A (400W) from a 24V source to a 24V secondary battery bank. Designed for dual-battery marine, RV, and off-grid systems, it provides galvanic isolation between battery banks and smart multi-stage charging for lithium and lead-acid batteries. Built-in Bluetooth enables easy setup and monitoring via the VictronConnect app.

Key Features

• 400W output power — efficient 24V to 24V isolated charging
• 17A output current — reliable charging for secondary 24V battery banks
• Isolated output — galvanic isolation protects sensitive electronics
• Built-in Bluetooth — configure and monitor via VictronConnect app
• Smart adaptive charging — multi-stage charging for lithium and lead-acid batteries

Specifications

• Input voltage: 24V
• Output voltage: 24V (adjustable)
• Max output current: 17A
• Max output power: 400W
• Communication: Bluetooth (VictronConnect)
• Protection: reverse polarity, over-temperature, short circuit

Ideal For

• Dual-battery marine and RV systems with split 24V banks
• Off-grid solar installations with isolated 24V battery banks
• Commercial vehicles requiring isolated secondary 24V charging
• Systems requiring galvanic isolation between 24V battery banks

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
