ORI482441110 Orion-Tr 48/24-16A (380W) Isolated DC-DC converter

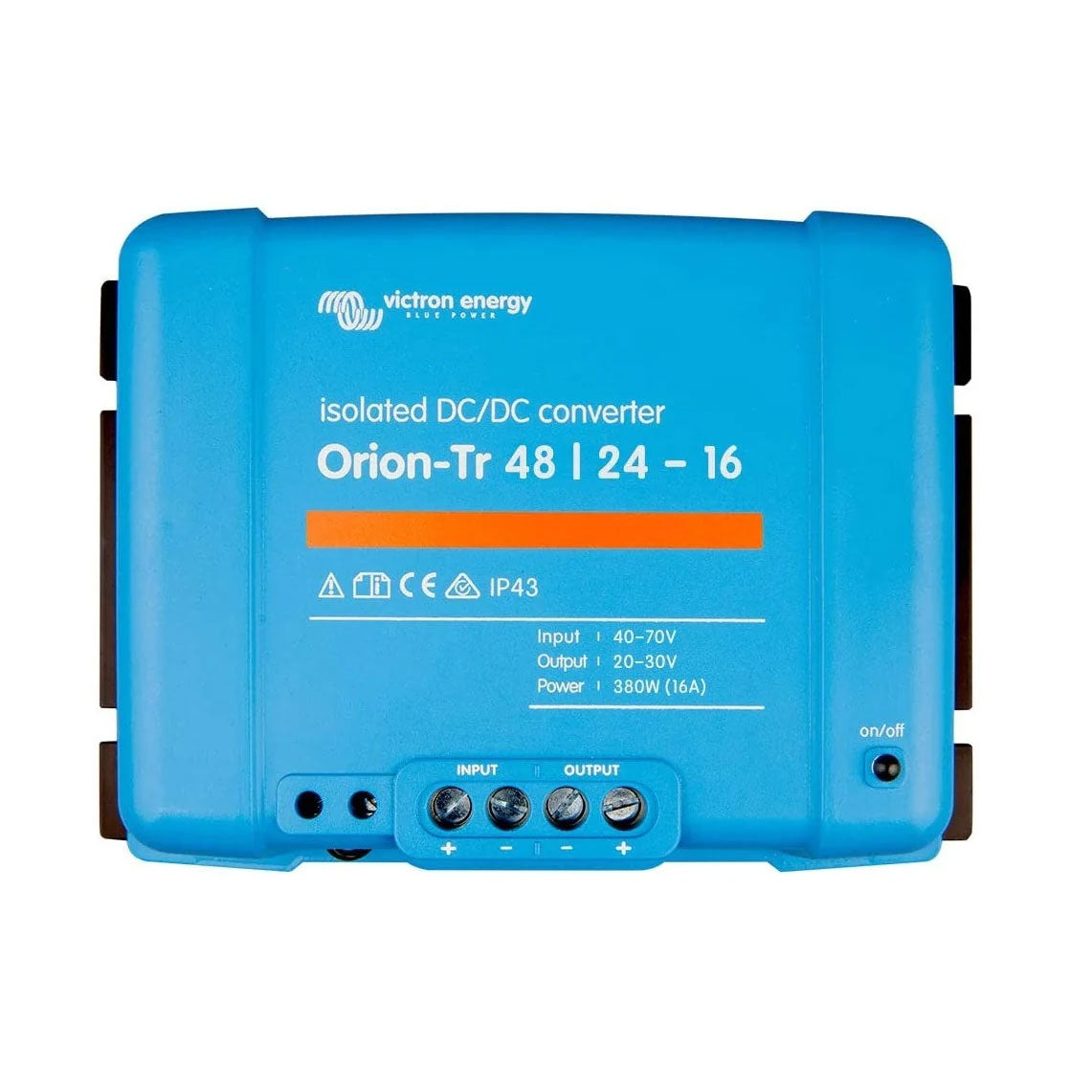

Victron Orion-Tr 48/24-16A Isolated DC-DC Converter

When your 48V system needs to deliver serious 24V power with complete electrical isolation, the Victron Orion-Tr 48/24-16A is the converter for the job. At 380W continuous output, it steps down from 48V to 24V at 16A with full galvanic isolation — protecting your electronics from ground loops and delivering clean, stable 24V power for demanding loads. Whether you're running high-current 24V equipment from a 48V off-grid system, powering 24V machinery from a 48V marine bank, or integrating 24V loads into a 48V energy storage installation, this converter handles it reliably.

Key Features

• 380W continuous output — 48V input to isolated 24V output at 16A
• Galvanic isolation — eliminates ground loops, protects sensitive electronics
• Wide input voltage range — compatible with 48V lead-acid and lithium battery systems
• Adjustable output voltage — fine-tune to match your 24V load requirements
• High efficiency — up to 93%, minimal heat generation
• Robust housing — suitable for demanding marine, off-grid, and industrial environments
• Remote on/off — easy integration with system controllers

Specifications

• Input voltage: 38–70V DC
• Output voltage: 24V (adjustable)
• Output current: 16A
• Output power: 380W
• Isolation: Yes (galvanic)
• Efficiency: Up to 93%
• Operating temperature: -40°C to +60°C

Ideal For

• High-current 24V power from 48V off-grid and marine systems
• Energy storage systems with 48V battery banks and 24V loads
• Telecom and industrial installations requiring isolated 24V from 48V
• Commercial vehicles and RVs with 48V primary systems and 24V equipment

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
