PMP122305102 MultiPlus-II 12/3000/120-50 2x120V (UL 458) (2400W)

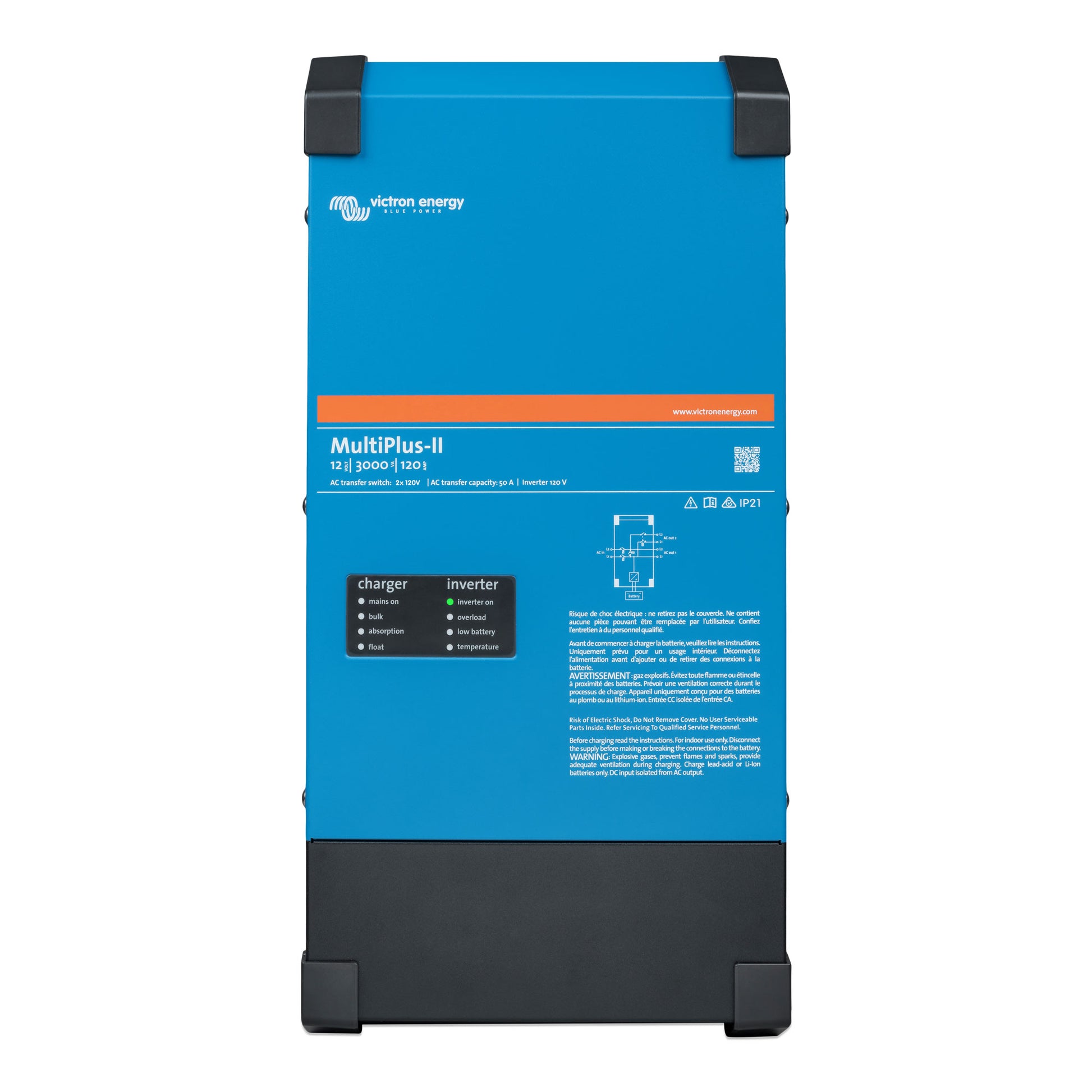

Victron MultiPlus-II 12/3000/120-50 2x120V — 2400W Inverter/Charger

The Victron MultiPlus-II 12/3000/120-50 2x120V is designed for North American 120/240V electrical systems while using a 12V battery bank. It provides 3,000VA / 2,400W of inverter capacity, an integrated 120A battery charger, PowerAssist, and VE.Bus communication.

Important 2x120V operation: In inverter mode, the unit supplies 120V only, with L1 and L2 tied together. It does not create 240V split-phase power from the battery. When a proper external 120/240V split-phase AC source is present, the unit can pass both AC legs through to the loads.

Key Features

• 3,000VA / 2,400W continuous inverter output
• 120A battery charger
• 50A AC input/transfer rating
• PowerAssist — supplements a limited shore or generator source when required
• VE.Bus communication — supports Victron system integration
• UL 458 listed

Specifications

• Product number: PMP122305102
• Battery voltage: 12V
• Inverter rating: 3,000VA / 2,400W
• Inverter-mode AC output: 120V; L1 and L2 tied together
• 240V operation: pass-through only when external split-phase AC input is present
• Charger current: 120A
• AC input: 50A
• Communication: VE.Bus
• Certification: UL 458

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
