PS-30M Morningstar PWM Solar Charge Controller 12/24V 30A ProStar with LCD

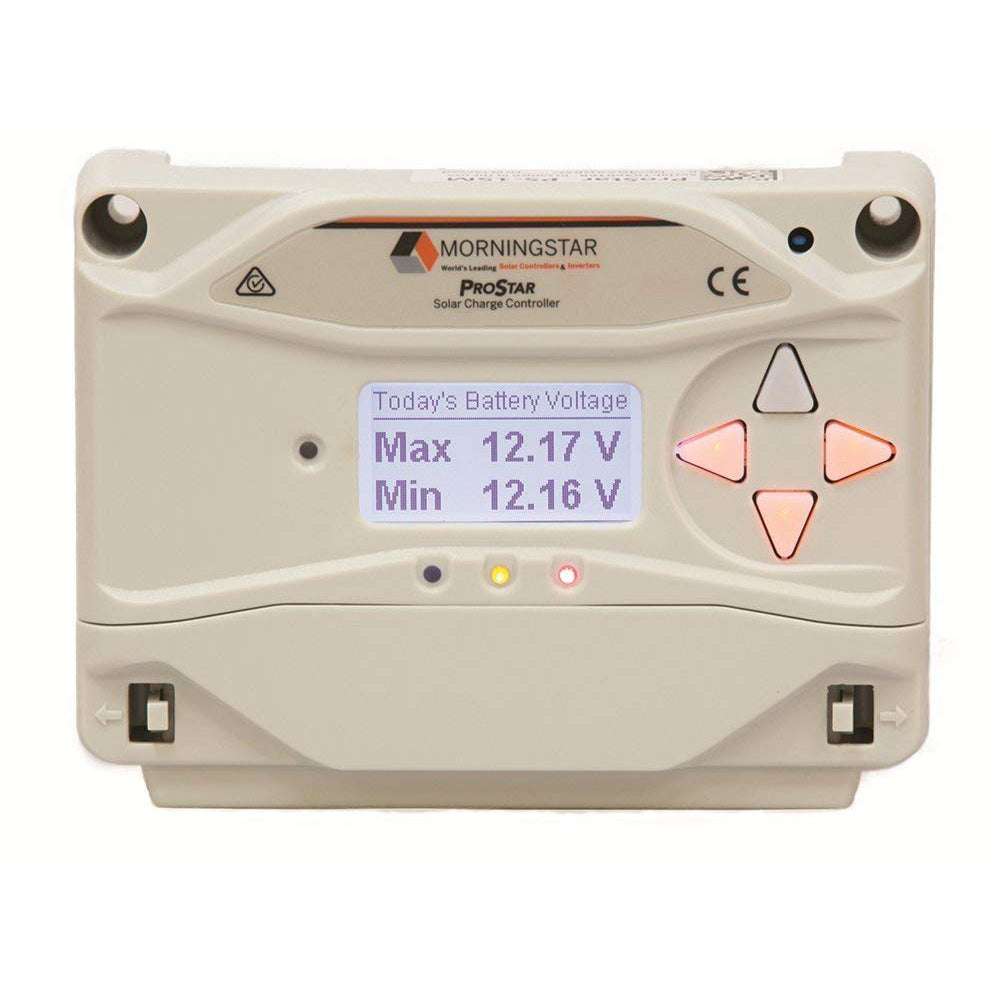

Morningstar ProStar PS-30M PWM Solar Charge Controller with LCD

The Morningstar ProStar PS-30M steps up the proven ProStar platform to 30A of PWM charge capacity — making it one of the most capable mid-range solar charge controllers available for professional off-grid installations. With a built-in LCD display, automatic 12V/24V detection, adjustable charge parameters, and MeterBus compatibility for remote monitoring, the PS-30M gives installers and system integrators everything they need to deploy a reliable, information-rich solar charging system in demanding environments.

Key Features

• 30A PWM charge control — supports 12V and 24V battery systems
• Built-in LCD display — shows battery voltage, charge current, load current, and system status
• Automatic 12V/24V system detection — no manual configuration required
• Low voltage disconnect (LVD) — protects battery from over-discharge
• Adjustable charge parameters — configurable for sealed, gel, flooded, and custom battery types
• MeterBus compatible — supports optional remote monitoring via Morningstar accessories
• Professional-grade build quality — designed for installer and commercial applications
• LED and LCD status indicators — comprehensive system visibility at a glance

Specifications

• System voltage: 12V or 24V (auto-detect)
• Max charge current: 30A
• Max load current: 30A
• Charge regulation: PWM
• Display: Built-in LCD
• LVD: Yes
• MeterBus: Yes
• Operating temperature: -40°C to +60°C

Ideal For

• Professional off-grid solar installations requiring on-site monitoring
• Larger remote cabins and cottages with 12V or 24V battery systems
• Telecom and industrial remote power systems with higher current demands
• Marine and RV applications requiring detailed system data and higher charge rates
• Installers and integrators who need a reliable, high-current PWM controller

Ships from Thunder Battery — Canada's trusted Morningstar dealer.
