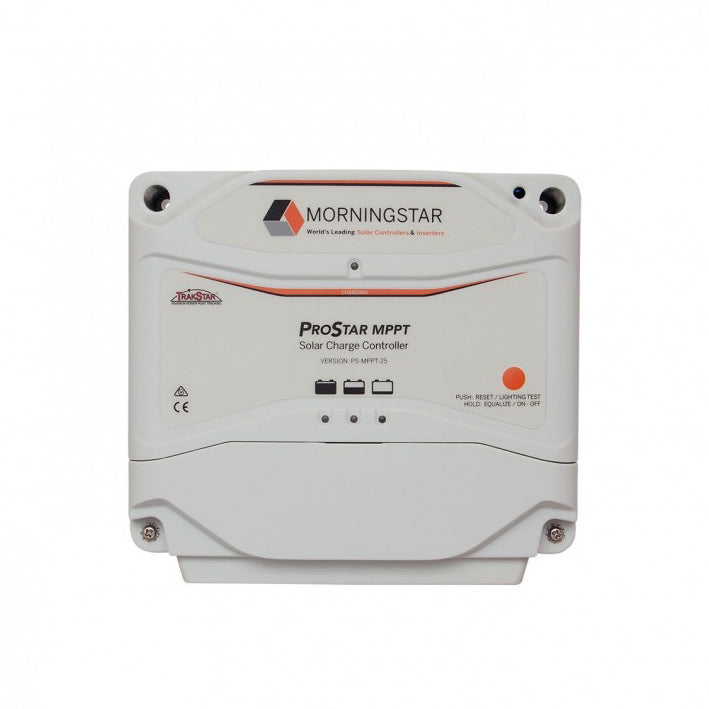

PS-MPPT-25 Morningstar MPPT Solar Charge Controller 12/24V 25A ProStar

Morningstar ProStar PS-MPPT-25 MPPT Solar Charge Controller 12/24V 25A

The Morningstar ProStar PS-MPPT-25 is a high-efficiency MPPT solar charge controller delivering 25A of charge current for 12V and 24V battery systems. Using advanced Maximum Power Point Tracking technology, it extracts significantly more energy from solar panels compared to PWM controllers — ideal for off-grid systems where maximizing solar harvest matters. MeterBus communication enables remote monitoring and configuration via optional accessories and MSView software.

Key Features

• 25A MPPT charge current — high-efficiency charging for 12V and 24V systems
• Advanced MPPT algorithm — maximizes energy harvest from solar panels
• Multi-stage adaptive charging — optimized for sealed, gel, and flooded lead-acid batteries
• MeterBus communication — supports remote meters and MSView PC software
• Durable construction — built for harsh environments and long-term reliability

Specifications

• Max charge current: 25A
• Battery voltage: 12V / 24V auto-select
• Charging algorithm: MPPT
• Communication: MeterBus
• Battery types: Sealed, Gel, Flooded lead-acid

Ideal For

• Off-grid solar installations requiring maximum energy harvest
• 12V and 24V battery systems
• Remote power and telecom applications
• Marine and RV solar setups

Ships from Thunder Battery — Canada's trusted solar equipment dealer.
