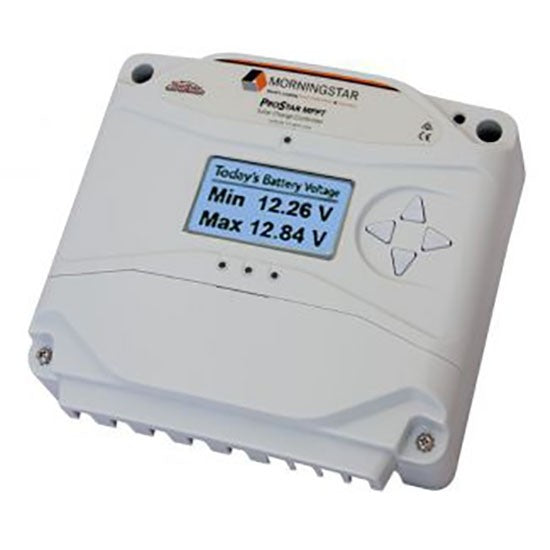

PS-MPPT-40M Morningstar MPPT Solar Charge Controller 12/24V 40A ProStar with LCD

Morningstar ProStar PS-MPPT-40M MPPT Solar Charge Controller 12/24V 40A with LCD

The Morningstar ProStar PS-MPPT-40M is a high-efficiency MPPT solar charge controller with a built-in LCD display, delivering 40A of charge current for 12V and 24V battery systems. The integrated LCD provides real-time monitoring of battery voltage, charge current, and system status without the need for a separate remote meter. Combining advanced MPPT technology with Morningstar's proven reliability, it is ideal for larger off-grid and remote power applications.

Key Features

• 40A MPPT charge current — high-efficiency charging for 12V and 24V systems
• Built-in LCD display — real-time monitoring without a separate meter
• Advanced MPPT algorithm — maximizes energy harvest from solar panels
• Multi-stage adaptive charging — optimized for sealed, gel, and flooded lead-acid batteries
• MeterBus communication — supports MSView PC software and optional accessories
• Durable construction — built for harsh environments

Specifications

• Max charge current: 40A
• Battery voltage: 12V / 24V auto-select
• Charging algorithm: MPPT
• Display: Built-in LCD
• Communication: MeterBus
• Battery types: Sealed, Gel, Flooded lead-acid

Ideal For

• Off-grid solar installations requiring on-site monitoring
• 12V and 24V battery systems
• Remote power and telecom applications
• Marine and RV solar setups

Ships from Thunder Battery — Canada's trusted solar equipment dealer.
