QUA482501102 Quattro 48/5000/70-100/100 120V VE.Bus (UL 1741 & CSA C22.2) (4000W)

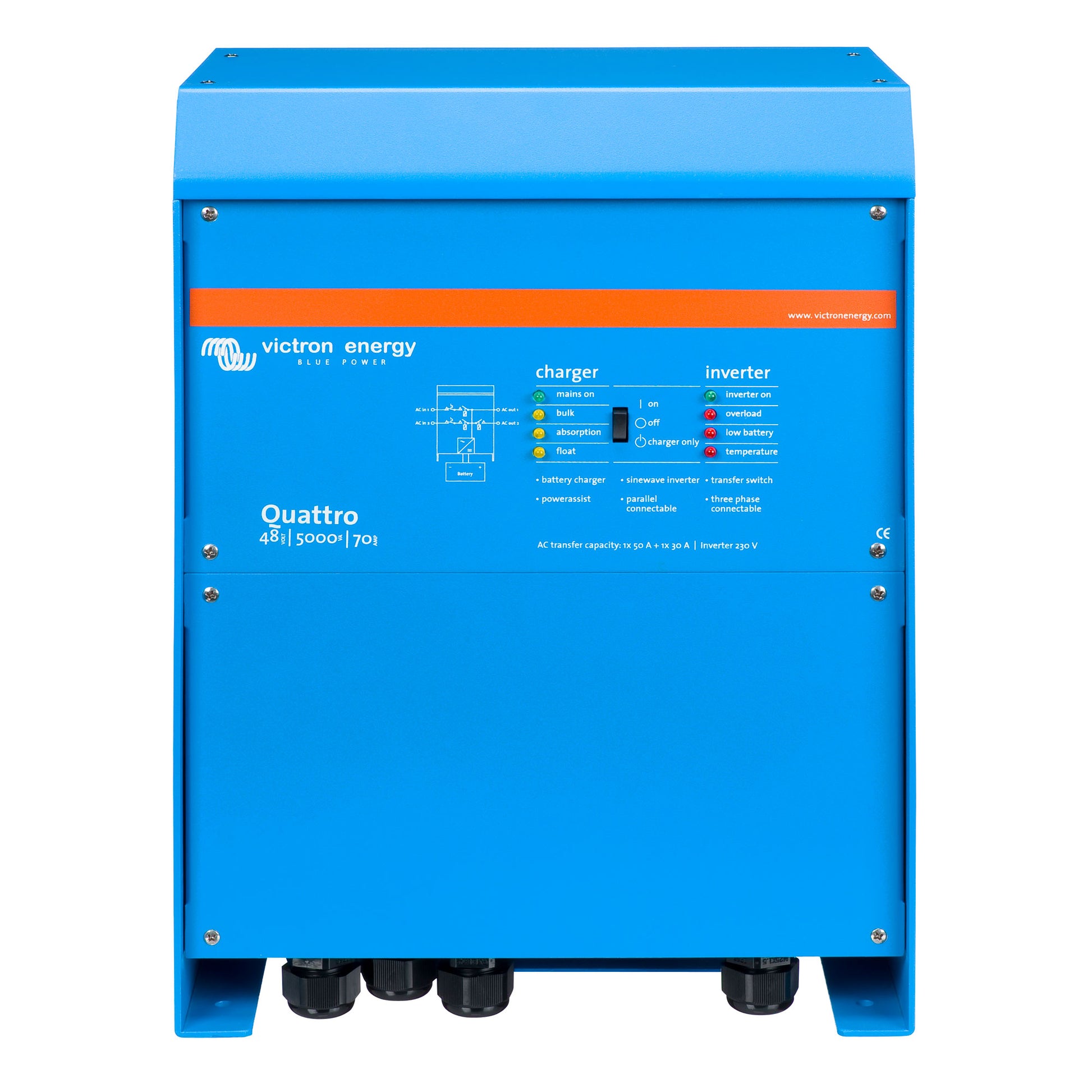

Victron Quattro 48/5000/70-100/100 120V VE.Bus — 4000W Inverter/Charger

The Victron Quattro 48/5000/70 brings the legendary dual-AC-input architecture of the Quattro series to mid-range power systems. With 5,000VA of continuous inverter output (4,000W), a 70A battery charger, and seamless automatic switching between two AC sources — grid and generator — this unit is the backbone of reliable hybrid and off-grid power systems. UL 1741 and CSA C22.2 certified for North American installations, it's equally at home in a solar cabin, a marine vessel, or a commercial backup system.

Key Features

• 5,000VA / 4,000W continuous inverter output — handles demanding loads reliably
• Dual AC inputs — automatically switches between grid and generator with zero transfer time
• 70A battery charger — adaptive multi-stage charging for 48V battery banks
• PowerAssist technology — supplements shore/generator power to prevent overload
• VE.Bus communication — supports parallel and three-phase configurations
• UL 1741 & CSA C22.2 listed — certified for North American grid-tied and off-grid use
• 48V battery system — compatible with lithium and lead-acid battery banks

Specifications

• Inverter output: 5,000VA / 4,000W continuous
• Input voltage: 120V AC
• Battery voltage: 48V
• Charger current: 70A
• AC output: 100A (two outputs)
• Communication: VE.Bus
• Certifications: UL 1741, CSA C22.2

Ideal For

• Mid-size off-grid solar installations
• Hybrid grid/generator/solar systems
• Marine and RV high-power installations
• Critical backup power systems
• Residential and light commercial applications

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
