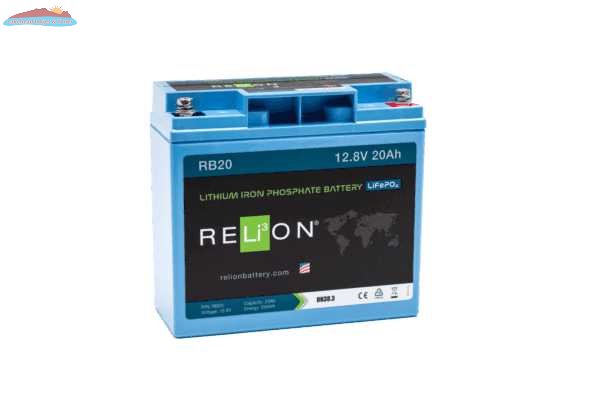

RELiON RB20 - 12V 20Ah Lithium Deep Cycle Battery

RELiON RB20 — 12V 20Ah Lithium Deep Cycle Battery

The RELiON RB20 is a 12V-class lithium iron phosphate (LiFePO4) deep cycle battery with a nominal voltage of 12.8V, 20Ah capacity and 256Wh of energy. Its compact ABS case, M6 terminals and 5.6 lb weight make it a compact power source for compatible deep cycle equipment.

Key Features

• LiFePO4 chemistry with cylindrical cells.
• 20A maximum continuous discharge and 40A peak discharge for 7.5 seconds ±2.5 seconds.
• Battery management system with voltage, current, short-circuit and high-temperature protection.
• IP66 enclosure protection and ABS case.
• 4,000+ cycles and 5-year warranty, as stated in the existing product specifications.
• Up to three modules in series.

Electrical Specifications

• Model: RB20
• Nominal voltage: 12.8V
• Nominal capacity: 20Ah at the 20-hour rate
• Energy: 256Wh
• Capacity at 25A: 48 minutes
• Resistance: ≤60 mΩ at 50% state of charge
• Efficiency: 99%
• Self-discharge: less than 3% per month
• Maximum modules in series: 3

Dimensions and Construction

• Dimensions (L × W × H): 181 × 76 × 169 mm (7.1 × 3.0 × 6.7 in)
• Weight: 2.55 kg (5.6 lb)
• Terminal type: M6 × 1.0
• Terminal torque: 4–5 N·m (35–44 in-lb)
• Case material: ABS
• Enclosure protection: IP66
• Cell type and chemistry: cylindrical LiFePO4

Discharge Specifications

• Maximum continuous discharge current: 20A
• Peak discharge current: 40A (7.5 seconds ±2.5 seconds)
• BMS discharge current cut-off: 70A ±10A (20 ±5 ms)
• Recommended low-voltage disconnect: 11V
• BMS discharge voltage cut-off: 8V (2.0 ±0.08V per cell), 140 ±60 ms
• Reconnect voltage: 10V (2.5 ±0.10V per cell)
• Short-circuit protection: 200–500 µs

Charging Specifications

• Recommended charge current: 1–10A
• Maximum charge current: 20A
• Recommended charge voltage: 14.2–14.6V
• BMS charge voltage cut-off: 15.2V (3.8 ±0.025V per cell), 1.1 ±0.4 seconds
• Reconnect voltage: 14.4V (3.6 ±0.025V per cell)
• Balancing voltage: 14.4V (3.6 ±0.025V per cell)
• Charging from -10°C to 0°C: ≤0.1C
• Charging from -20°C to -10°C: ≤0.05C

Use charging equipment compatible with the battery's LiFePO4 voltage and current requirements. Observe the reduced charging-current limits below 0°C.

Temperature Specifications

• Discharge temperature: -20°C to 60°C (-4°F to 140°F)
• Charge temperature: -20°C to 45°C (-4°F to 113°F), subject to reduced current limits below 0°C
• Storage temperature: -5°C to 35°C (23°F to 95°F)
• BMS high-temperature cut-off: 70°C (158°F)
• Reconnect temperature: 50°C (122°F)

Listed Certifications and Shipping Classification

The existing product data sheet lists CE and UN38.3 for the battery, UL1642 and IEC62133 for the cells, and shipping classification UN 3480, Class 9.
