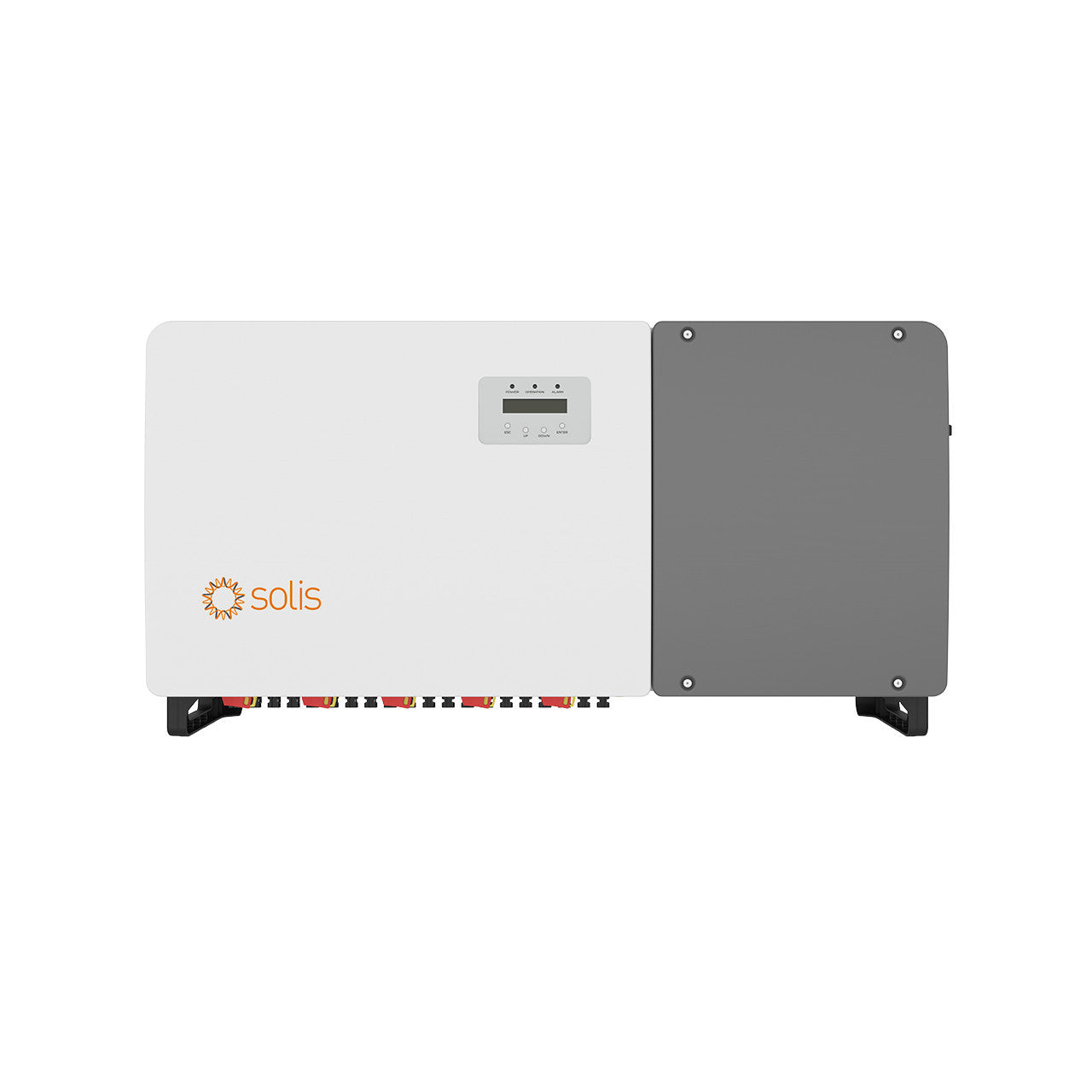

S5-GC100K-US-APST Solis PV Inverter S5 100kW 480V 3-Phase with APS Transmitter

Solis S5-GC100K-US-APST — 100kW / 480V | 3-Phase PV String Inverter with APS Transmitter

The Solis S5-GC100K-US-APST is a 100kW, 480V three-phase string inverter from the 5th Generation S5 series, designed for commercial solar installations requiring advanced grid communication. Featuring an integrated APS Transmitter, up to 10 MPPTs, AFCI protection, and UL 1741-SB certification, it delivers reliable, grid-compliant performance for North American commercial applications.

Key Features

• 100kW Output / 480V AC — optimized for commercial 480V three-phase systems
• Integrated APS Transmitter — advanced power system communication for grid compliance
• Up to 10 MPPTs, 98.8% Max Efficiency — string current up to 16A for high-capacity module compatibility
• >1.5 DC/AC Ratio Support — lower starting voltage and longer daily generation time
• AFCI Protection — proactively reduces arc-fault fire risk
• External Signal Control Function — enables demand response and utility signal integration
• Built-in Nighttime PID Recovery — protects and restores module performance over time
• Smart I-V Curve Scan — intelligent string monitoring and remote firmware upgrades
• DC-Side “Y” Connector Support — simplifies DC wiring and reduces BOS costs
• Type 4X / C5 Anti-Corrosion — rated for harsh outdoor environments
• 10-Year Warranty — dimensions: 1065mm × 567mm, weight: 90.7kg

Certifications

• UL 1741-SA and UL 1741-SB
• IEEE 2030.5 (CSIP)

Compatible With

• 480V three-phase commercial grid configurations
• High-capacity PV modules with string current up to 16A
• SolisCloud remote monitoring platform

Contact us for custom pricing. Ships from Thunder Battery — Canada's trusted battery dealer.
