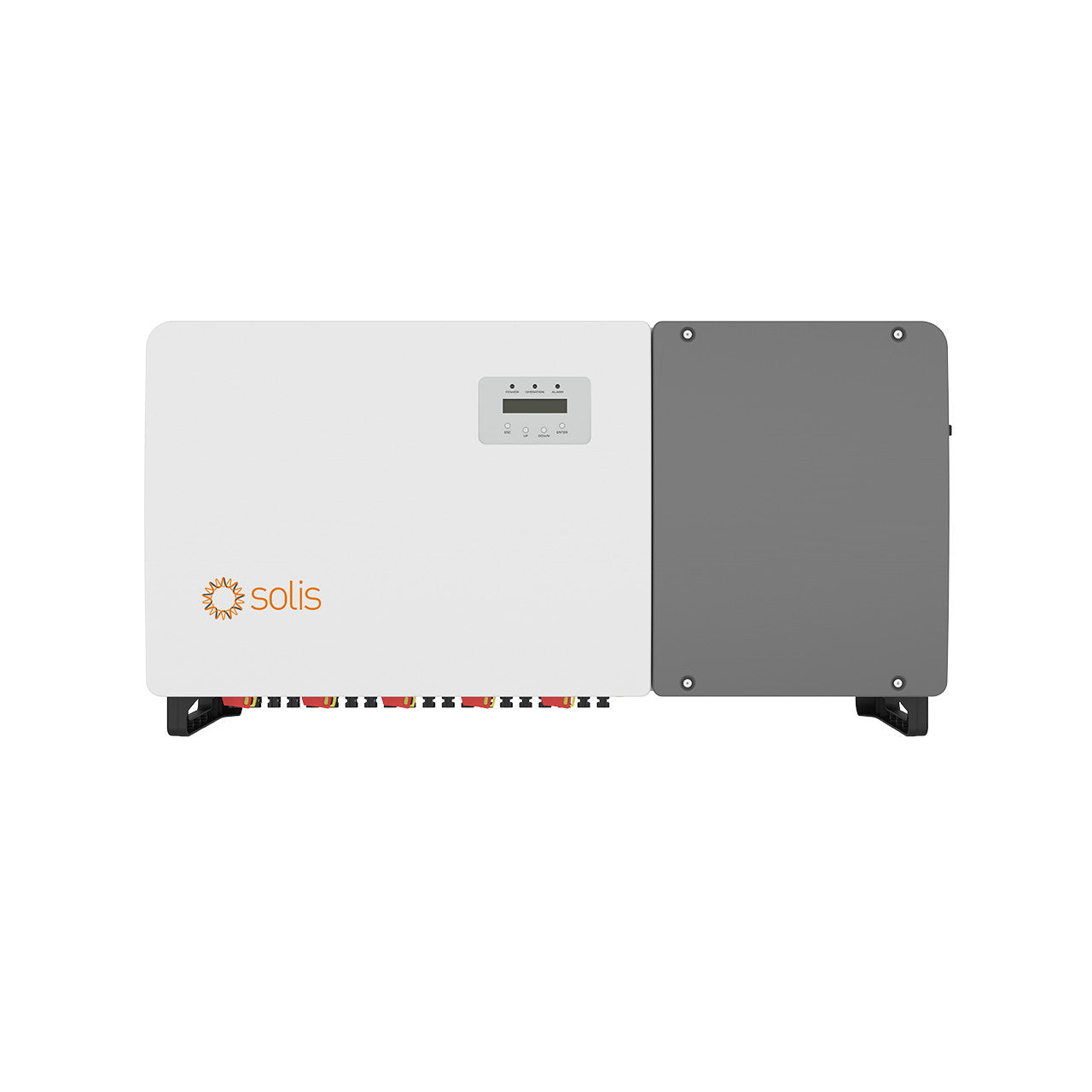

S5-GC60K-LV-US-APST Solis PV Inverter S5 60KW 208V 3-Phase with APS Transmitter

Solis S5-GC60K-LV-US-APST — 60kW / 208V | 3-Phase PV String Inverter with APS Transmitter

The Solis S5-GC60K-LV-US-APST is a 60kW, 120/208V low-voltage three-phase string inverter from the 5th Generation S5 series, purpose-built for commercial solar installations requiring advanced grid communication. Featuring an integrated APS Transmitter, 8 MPPTs, AFCI protection, and UL 1741-SB certification, it delivers reliable, grid-compliant performance for North American commercial applications.

Key Features

• 60kW Output / 120–208V AC (Low Voltage) — optimized for commercial 208V three-phase systems
• Integrated APS Transmitter — advanced power system communication for grid compliance
• 8 MPPTs, 98.5% Max Efficiency — string current up to 16A for high-capacity module compatibility
• >1.5 DC/AC Ratio Support — lower starting voltage and longer daily generation time
• AFCI Protection — proactively reduces arc-fault fire risk
• External Signal Control Function — enables demand response and utility signal integration
• Built-in Nighttime PID Recovery — protects and restores module performance over time
• Smart I-V Curve Scan — intelligent string monitoring and remote firmware upgrades
• DC-Side “Y” Connector Support — simplifies DC wiring and reduces BOS costs
• Type 4X / C5 Anti-Corrosion — rated for harsh outdoor environments
• 10-Year Warranty — dimensions: 1065mm × 567mm, weight: 90.7kg

Certifications

• UL 1741-SA and UL 1741-SB
• IEEE 2030.5 (CSIP)

Compatible With

• 120/208V three-phase commercial grid configurations
• High-capacity PV modules with string current up to 16A
• SolisCloud remote monitoring platform

Contact us for custom pricing. Ships from Thunder Battery — Canada's trusted battery dealer.
