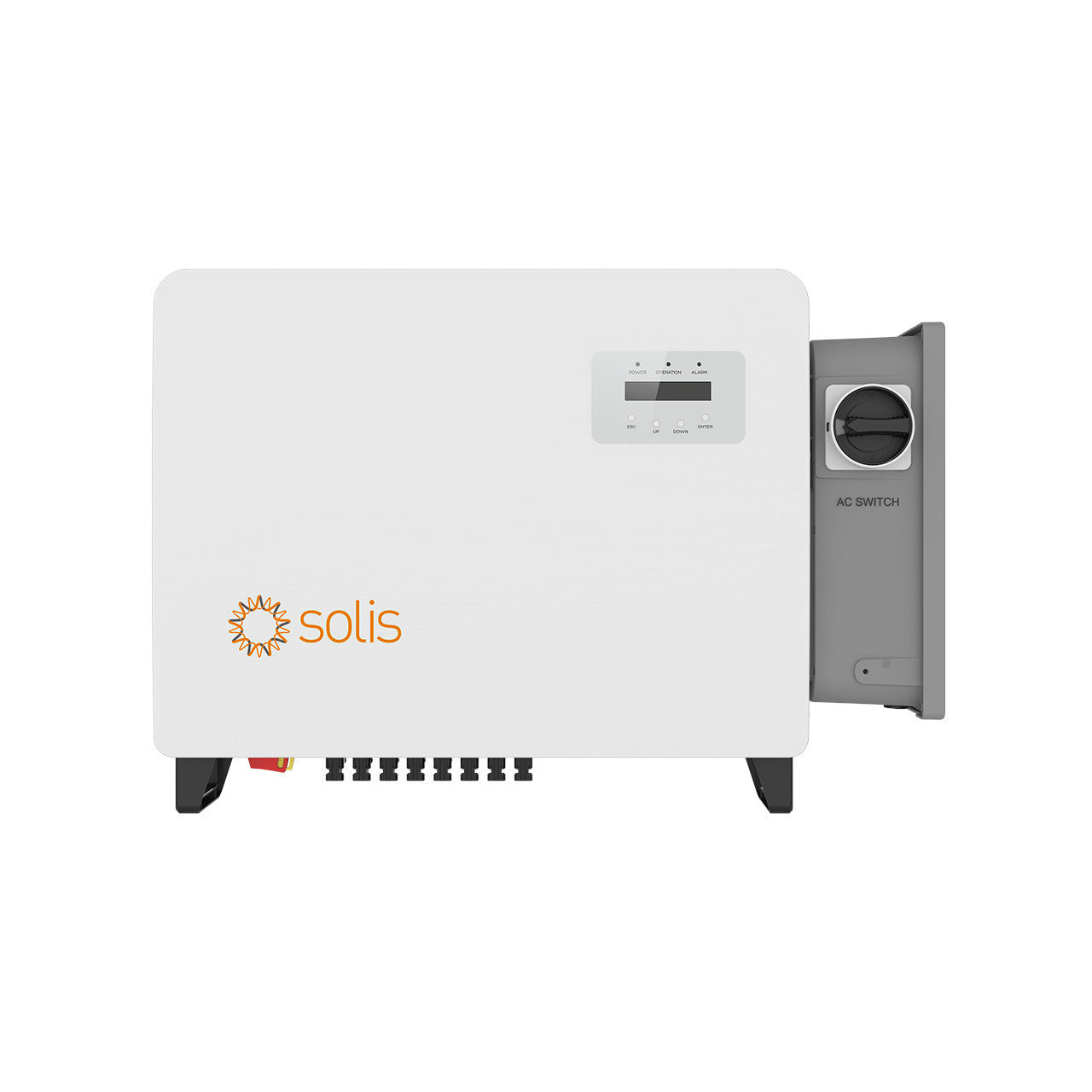

S6-GC30K-LV-US-APST Solis PV Inverter S6 30kW 208V 3-Phase with APS Transmitter

Solis S6-GC30K-LV-US-APST — 30kW / 208V | 3-Phase PV String Inverter with APS Transmitter

The Solis S6-GC30K-LV-US-APST is a 30kW, 120/208V low-voltage three-phase string inverter from the 6th Generation S6 series, designed for commercial solar installations requiring advanced grid communication and flexible system design. Featuring an integrated APS Transmitter, 3 MPPTs, AFCI protection, and UL 1741-SB certification, it delivers safe, reliable, and cost-effective performance for North American commercial applications.

Key Features

• 30kW Output / 120–208V AC (Low Voltage) — optimized for commercial 208V three-phase systems
• Integrated APS Transmitter — module-level rapid shutdown transmitter built in
• 3 MPPTs, 97.7% Max Efficiency — supports multiple orientation system layouts; string current up to 20A
• >1.5 DC/AC Ratio Support — wide voltage range and low startup voltage
• AFCI Protection — proactively reduces arc-fault fire risk
• Intelligent Redundant Fan Cooling — reliable thermal management for continuous operation
• External Power Control Interface — supports zero output power control for grid compliance
• Multi-Protocol Connectivity — RS485, Ethernet, WiFi, and Cellular supported
• SolisCloud Integration — scan-to-register, remote upgrade and control
• Nighttime PID Recovery — optional function to increase overall system yield
• Type 4X / C5 Anti-Corrosion — rated for harsh outdoor environments
• 10-Year Warranty — dimensions: 647mm × 629mm, weight: 37.0kg

Certifications

• UL 1741-SB
• IEEE 2030.5 (CSIP)

Compatible With

• 120/208V three-phase commercial grid configurations
• High-power PV modules with string current up to 20A
• Multiple orientation and mixed-azimuth system designs
• SolisCloud remote monitoring platform

Contact us for pricing. Ships from Thunder Battery — Canada's trusted battery dealer.
