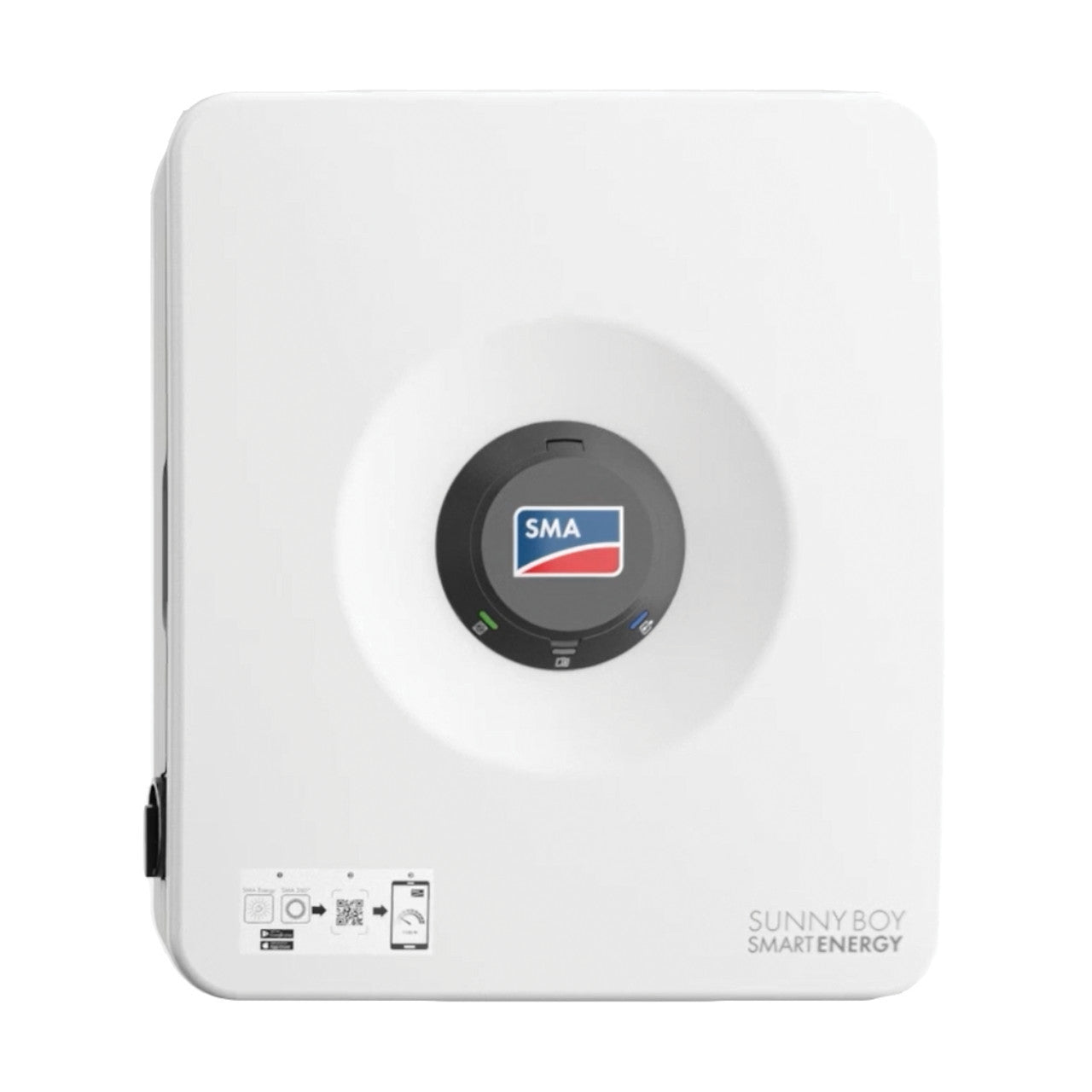

SBSE11.5-US-50 SMA Sunny Boy Smart Energy Hybrid Inverter 11.5KW

SMA SBSE11.5-US-50 — Sunny Boy Smart Energy | 11.5kW Hybrid Inverter

The SMA Sunny Boy Smart Energy (SBSE11.5-US-50) is the top-of-range 11.5kW hybrid inverter in the SMA Energy System Home lineup. Combining solar inverter and battery storage in a single device, it features high-speed battery charging, up to 4 MPPT channels, and 200% DC/AC design capability — with three available backup options and the highest peak output in the SBSE series.

Key Features

• 11.5kW Continuous / 23.04kW Peak — highest output in the Sunny Boy Smart Energy lineup
• Up to 4 MPPT Channels — optimizes yield across multiple roof orientations or shading conditions
• 200% DC/AC Design Capability — maximizes solar harvest and fast battery charging even on cloudy days
• Three Backup Options — flexible backup configurations with or without a battery
• Hybrid, PV-Only & AC Coupling — all in one device; no microinverters or optimizers required
• SunSpec Rapid Shutdown — certified transmitter built in; NEC compliant
• SMA 360° App — intuitive mobile commissioning with scan, tap, and connect workflow
• Compact & Lightweight — 680.7mm × 500.4mm, 19.9kg
• Certifications — UL 1741-SB/SA, UL 62109-1, UL 1998, UL 1699B Ed.1, UL 9540
• Part Number SBSE11.5-US-50 — 10-year warranty (extendable to 25 years)

Specifications

• AC Output Voltage: 240/208V AC
• DC Input Voltage: 200–480V DC
• Rated Power: 11,520W (11.5kW)
• Peak Power: 23,040W (23.04kW)
• Dimensions: 680.7mm H × 500.4mm W
• Weight: 19.9kg

Compatible With

• SMA BU-STRT-US-50 Backup Start Module (black start / Backup Secure)
• SMA BU-SLCT-US-50 Backup Select Module (up to 5,760W critical load management)
• Sunny Portal powered by ennexOS

Contact us for pricing. Ships from Thunder Battery — Canada's trusted battery dealer.
