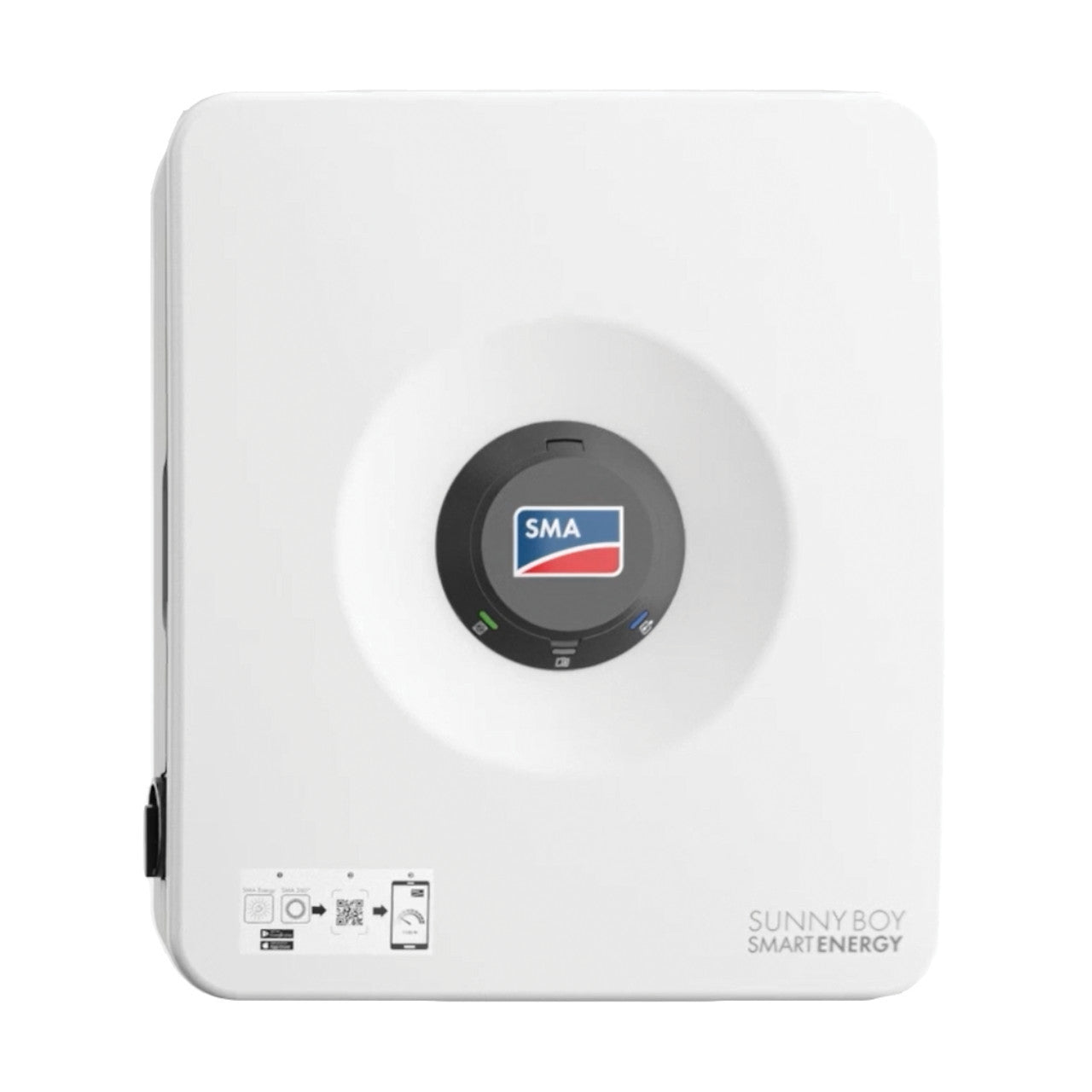

SBSE7.7-US-50 SMA Sunny Boy Smart Energy Hybrid Inverter 7.7kW

SMA SBSE7.7-US-50 — Sunny Boy Smart Energy | 7.7kW Hybrid Inverter

The SMA Sunny Boy Smart Energy (SBSE7.7-US-50) is a 7.7kW hybrid inverter at the heart of the SMA Energy System Home. Combining solar inverter and battery storage in a single device, it features high-speed battery charging, up to 4 MPPT channels, and 200% DC/AC design capability — with three available backup options to keep your home powered when the grid goes down.

Key Features

• 7.7kW Continuous / 15.36kW Peak — high-power hybrid output for residential loads
• Up to 4 MPPT Channels — optimizes yield across multiple roof orientations or shading conditions
• 200% DC/AC Design Capability — maximizes solar harvest and fast battery charging even on cloudy days
• Three Backup Options — flexible backup configurations with or without a battery
• Hybrid, PV-Only & AC Coupling — all in one device; no microinverters or optimizers required
• SunSpec Rapid Shutdown — certified transmitter built in; NEC compliant
• SMA 360° App — intuitive mobile commissioning with scan, tap, and connect workflow
• Compact & Lightweight — 586.7mm × 500.4mm, 17.5kg
• Certifications — UL 1741-SB/SA, UL 62109-1, UL 1998, UL 1699B Ed.1, UL 9540
• Part Number SBSE7.7-US-50 — 10-year warranty (extendable to 25 years)

Specifications

• AC Output Voltage: 240/208V AC
• DC Input Voltage: 180–480V DC
• Rated Power: 7,680W (7.7kW)
• Peak Power: 15,360W (15.36kW)
• Dimensions: 586.7mm H × 500.4mm W
• Weight: 17.5kg

Compatible With

• SMA BU-STRT-US-50 Backup Start Module (black start / Backup Secure)
• SMA BU-SLCT-US-50 Backup Select Module (up to 3,840W critical load management)
• Sunny Portal powered by ennexOS

Contact us for pricing. Ships from Thunder Battery — Canada's trusted battery dealer.
