SCC125070221 SmartSolar MPPT 250/70-Tr

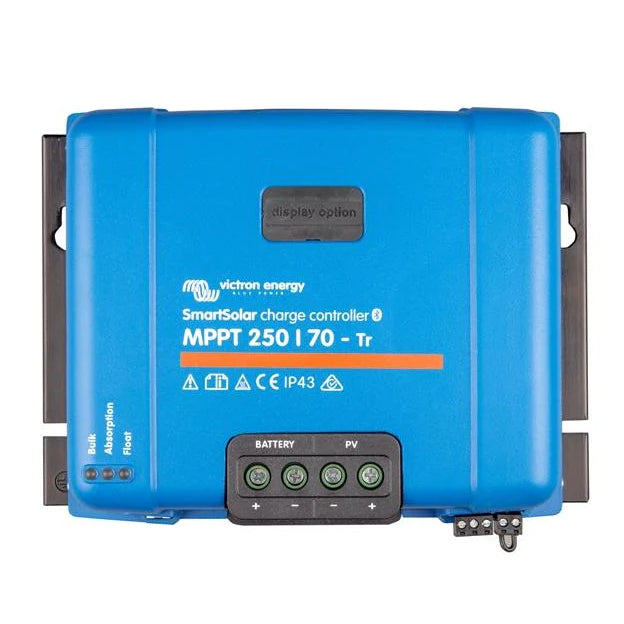

Victron SmartSolar MPPT 250/70-Tr Solar Charge Controller

The Victron SmartSolar MPPT 250/70-Tr is a high-voltage solar charge controller built for large off-grid and hybrid solar installations. With a 250V maximum PV input voltage and 70A output current, it supports long string arrays and high-power solar setups. Screw terminal (Tr) connections offer flexible wiring, while built-in Bluetooth and VE.Direct communication enable full integration with the Victron ecosystem.

Key Features

• 250V maximum PV input voltage — supports long series-connected solar strings
• 70A output current — high-current charging for large battery banks
• Screw terminal (Tr) connections — flexible wiring for custom installations
• Built-in Bluetooth — configure and monitor via VictronConnect app
• VE.Direct communication — integrates with GX devices and Victron monitoring
• Ultra-fast MPPT tracking — up to 99% tracking efficiency
• Compatible with lithium and lead-acid batteries

Specifications

• Max PV voltage: 250V
• Max charge current: 70A
• Battery voltage: 12/24/36/48V auto-select
• Communication: VE.Direct, Bluetooth
• Max PV power (48V): 3500W

Ideal For

• Large off-grid solar installations
• Hybrid grid/solar systems
• High-voltage PV string configurations
• Systems requiring VE.Direct network integration

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
