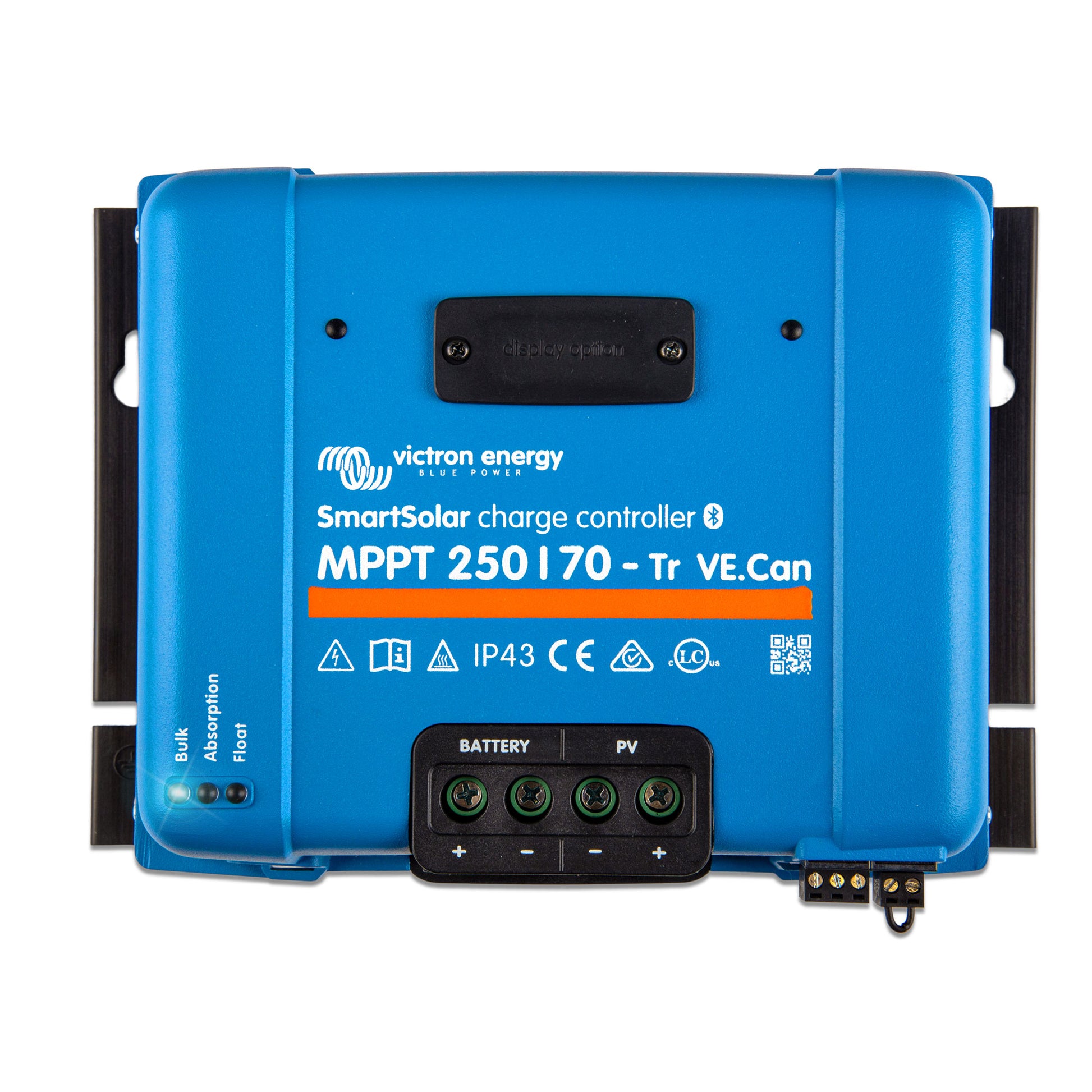

SCC125070421 SmartSolar MPPT 250/70-Tr VE.Can Solar Charge Controller

Victron Orion-Tr Smart 24/12-30A Non-Isolated DC-DC Charger

When your 24V system needs to charge a 12V auxiliary battery at maximum current with full smart control, the Victron Orion-Tr Smart 24/12-30A is the converter for the job. At 360W continuous output, it steps down from 24V to 12V at 30A with built-in Bluetooth so you can monitor charging status, configure battery profiles, and adjust settings wirelessly via the VictronConnect app. Whether you're running a large marine installation, a heavy-duty commercial vehicle, or a fully loaded expedition rig, this smart charger delivers fast, reliable 12V auxiliary charging every time.

Key Features

• 360W continuous output — 24V input to 12V output at 30A
• Built-in Bluetooth — monitor and configure via VictronConnect app
• Adaptive charging algorithm — supports lead-acid and lithium (LiFePO4) batteries
• Non-isolated design — efficient power conversion for shared-ground systems
• Engine detection — automatically starts charging when the alternator is running
• Adjustable output voltage — fine-tune for your specific battery chemistry
• Robust housing — suitable for demanding marine, RV, and vehicle environments

Specifications

• Input voltage: 15–35V DC
• Output voltage: 12V (adjustable)
• Output current: 30A
• Output power: 360W
• Isolation: Non-isolated
• Bluetooth: Yes (VictronConnect)
• Operating temperature: -40°C to +60°C

Ideal For

• High-current 12V auxiliary charging from 24V marine and RV systems
• Commercial vehicles with 24V systems requiring maximum 12V charging current
• Expedition vehicles and overlanders with 24V primary systems
• Off-grid solar systems with 24V battery banks and large 12V loads

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
