SHU050210050 SmartShunt 1000A/50mV

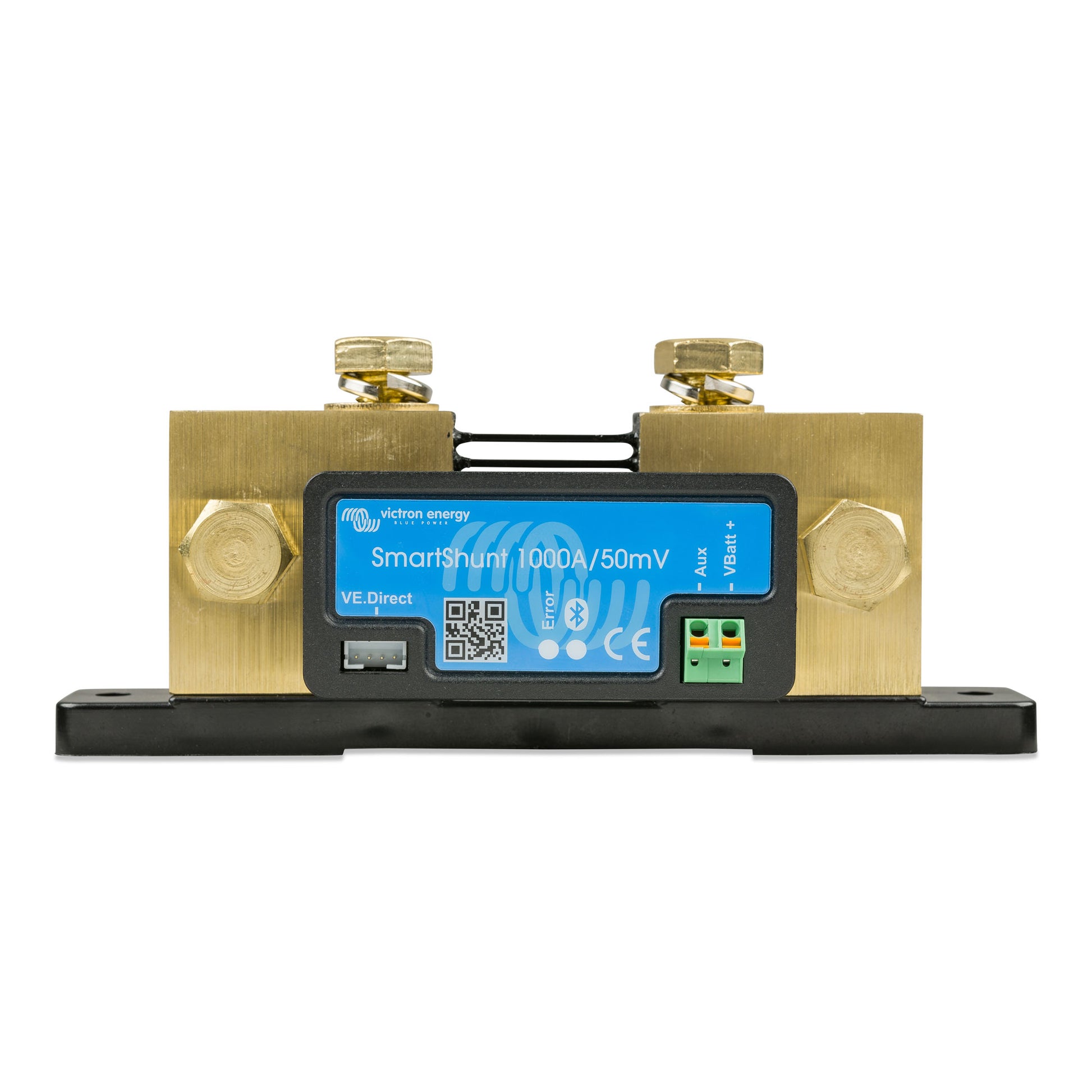

Victron SmartShunt 1000A/50mV Battery Monitor

The Victron SmartShunt 1000A/50mV is a high-current, all-in-one battery monitor that replaces traditional shunt-based monitors with a compact, Bluetooth-enabled solution. Capable of measuring up to 1000A continuously, it provides accurate state-of-charge, voltage, current, power, and consumed amp-hour data directly to the VictronConnect app — no separate display unit required. Ideal for large off-grid, marine, and industrial battery systems.

Key Features

• 1000A continuous current rating — suitable for large battery banks and high-current systems
• Built-in Bluetooth — monitor via VictronConnect app, no display unit needed
• Accurate SOC tracking — state-of-charge, voltage, current, power & amp-hours
• VE.Direct output — integrates with GX devices and Victron monitoring ecosystem
• Compact design — replaces traditional shunt + display combinations
• Configurable alarms — low SOC, high/low voltage, and more

Specifications

• Max continuous current: 1000A
• Shunt resistance: 50mV / 1000A
• Communication: Bluetooth (VictronConnect), VE.Direct
• Battery voltage range: 6.5–70V DC
• Compatible with: All battery chemistries

Ideal For

• Large off-grid solar battery banks
• Marine and yacht high-current electrical systems
• Industrial and commercial energy storage systems
• Any system requiring accurate high-current battery monitoring

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
