SHU102050200 Shunt 1000A/50mV-0,5 / 2xM10

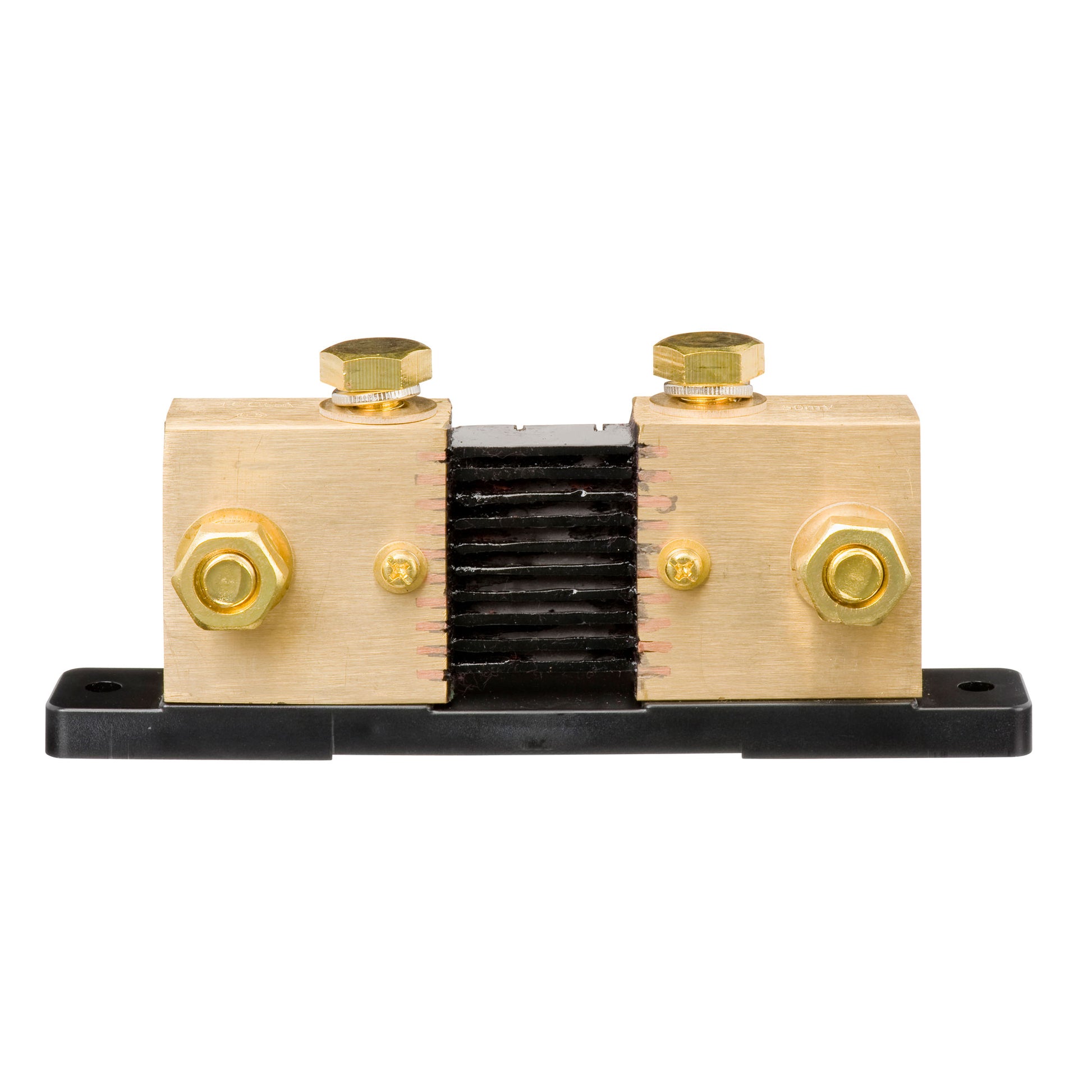

Victron Shunt 1000A/50mV — 2xM10

The Victron Shunt 1000A/50mV is a high-accuracy DC current shunt designed for use with battery monitors in large off-grid, marine, and industrial power systems. With dual M10 connection points and a 1000A continuous current rating, it provides precise current measurement for accurate state-of-charge tracking. Suitable as a higher-current shunt for compatible Victron BMV battery monitors when the BMV shunt settings are configured for 1000A/50mV.

Key Features

• 1000A continuous current rating — suitable for large battery banks and high-current systems
• 50mV rated voltage drop at 1000A — enables accurate high-current measurement
• Dual M10 connections — secure, low-resistance busbar connections
• BMV upgrade option — can replace the standard BMV shunt for higher-current systems when configured accordingly
• Robust construction — built for reliable long-term high-current use

Specifications

• Max continuous current: 1000A
• Rated voltage drop: 50mV at 1000A (approximately 50µΩ)
• Connection: 2x M10
• Accuracy class: 0.5

Ideal For

• Large off-grid solar battery banks
• Marine and yacht high-current electrical systems
• Industrial and commercial energy storage systems
• Replacement or upgrade shunt for Victron battery monitors

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
