SK-12 Morningstar PWM Solar Charge Controller 12V 12A SunKeeper

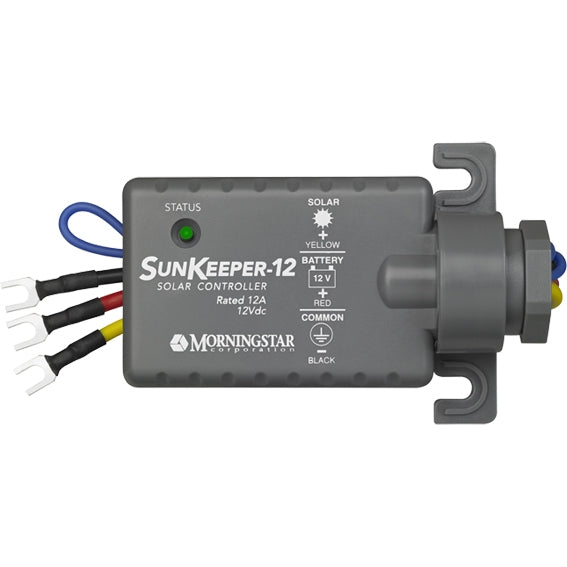

Morningstar SunKeeper SK-12 PWM Solar Charge Controller

The Morningstar SunKeeper SK-12 brings the same proven self-contained design as the SK-6 — but with 12A of PWM charge capacity for larger 12V solar systems. Connect it directly between your solar panel and battery with no enclosure or additional wiring required. With integrated low voltage disconnect (LVD), it protects your battery from both overcharge and over-discharge automatically, making it ideal for unattended remote installations where reliability is everything.

Key Features

• 12A PWM charge control — reliable battery protection for larger 12V solar systems
• Integrated low voltage disconnect (LVD) — protects battery from over-discharge automatically
• Self-contained design — connects directly between panel and battery, no enclosure needed
• Weatherproof housing — suitable for outdoor and remote installations
• LED status indicators — visual confirmation of charge and load status
• Ultra-low self-consumption — <1mA, ideal for long-term unattended use
• Compatible with sealed, gel, and flooded lead-acid batteries

Specifications

• System voltage: 12V
• Max charge current: 12A
• Max load current: 12A
• Charge regulation: PWM
• LVD: Yes (integrated)
• Self-consumption: <1mA
• Operating temperature: -40°C to +60°C

Ideal For

• Remote solar lighting systems with larger panel arrays
• Unattended off-grid installations requiring LVD protection
• Cabin and cottage battery systems with higher solar input
• Security and monitoring equipment with significant power draw
• Marine and RV battery charging from larger solar panels

Ships from Thunder Battery — Canada's trusted Morningstar dealer.
