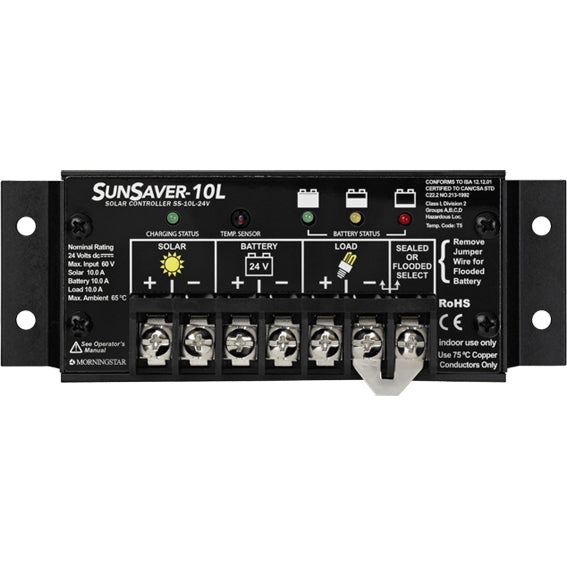

SS-10L-24V Morningstar PWM Solar Charge Controller 24V 10A LVD SunSaver

Morningstar SunSaver SS-10L 24V PWM Solar Charge Controller with LVD

The Morningstar SunSaver SS-10L 24V delivers proven SunSaver reliability for 24V solar systems — with 10A of PWM charge capacity and integrated low voltage disconnect (LVD) to protect your battery from both overcharge and over-discharge. Compact, weatherproof, and virtually self-sufficient, it's the ideal choice for remote 24V installations where you need dependable battery protection without any ongoing maintenance or adjustment.

Key Features

• 10A PWM charge control — reliable battery protection for 24V solar systems
• Integrated low voltage disconnect (LVD) — automatically disconnects loads to prevent battery damage
• Industry-proven SunSaver reliability — millions of units deployed worldwide
• Weatherproof enclosure — suitable for outdoor and remote installations
• LED status indicators — visual confirmation of charge and load status
• Ultra-low self-consumption — <1mA, ideal for long-term unattended use
• Compatible with sealed, gel, and flooded lead-acid batteries

Specifications

• System voltage: 24V
• Max charge current: 10A
• Max load current: 10A
• Charge regulation: PWM
• LVD: Yes (integrated)
• Self-consumption: <1mA
• Operating temperature: -40°C to +60°C
• Enclosure: IP32

Ideal For

• Remote 24V off-grid systems with loads requiring LVD protection
• Marine battery systems with 24V accessories
• Telecom and remote monitoring installations
• Agricultural and industrial remote 24V power systems
• Security and surveillance systems with 24V battery backup

Ships from Thunder Battery — Canada's trusted Morningstar dealer.
