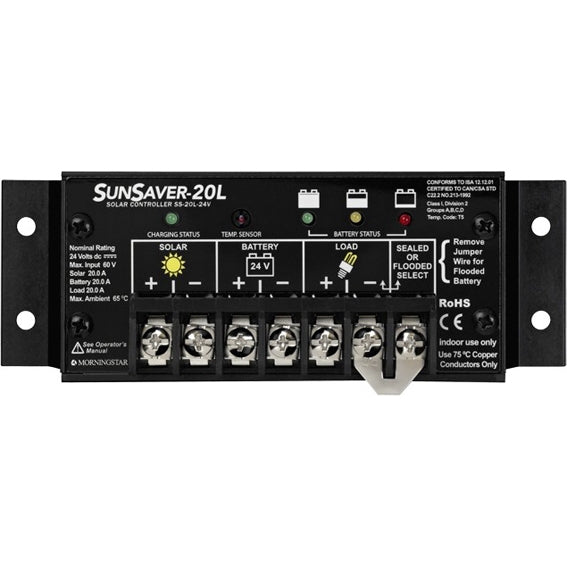

SS-20L-24V Morningstar PWM Solar Charge Controller 24V 20A LVD SunSaver

Morningstar SunSaver SS-20L 24V PWM Solar Charge Controller with LVD

The Morningstar SunSaver SS-20L 24V brings the legendary SunSaver reliability to 24V solar systems — with 20A of PWM charge capacity and integrated low voltage disconnect (LVD) to protect your battery from both overcharge and over-discharge. Whether you're running a remote 24V off-grid system with multiple loads, a marine installation with 24V accessories, or an industrial remote power system that needs to run unattended for months, the SS-20L 24V handles it with the dependability Morningstar is known for worldwide.

Key Features

• 20A PWM charge control — handles larger 24V solar arrays with ease
• Integrated low voltage disconnect (LVD) — automatically disconnects loads to prevent battery damage
• Industry-proven SunSaver reliability — millions of units deployed worldwide
• Weatherproof enclosure — suitable for outdoor and remote installations
• LED status indicators — visual confirmation of charge and load status
• Ultra-low self-consumption — <1mA, ideal for long-term unattended use
• Compatible with sealed, gel, and flooded lead-acid batteries

Specifications

• System voltage: 24V
• Max charge current: 20A
• Max load current: 20A
• Charge regulation: PWM
• LVD: Yes (integrated)
• Self-consumption: <1mA
• Operating temperature: -40°C to +60°C
• Enclosure: IP32

Ideal For

• Remote 24V off-grid systems with larger solar arrays and multiple loads
• Marine battery systems with 24V accessories
• Telecom and remote monitoring installations requiring LVD protection
• Agricultural and industrial remote 24V power systems
• RV and vehicle systems running 24V with solar input

Ships from Thunder Battery — Canada's trusted Morningstar dealer.
