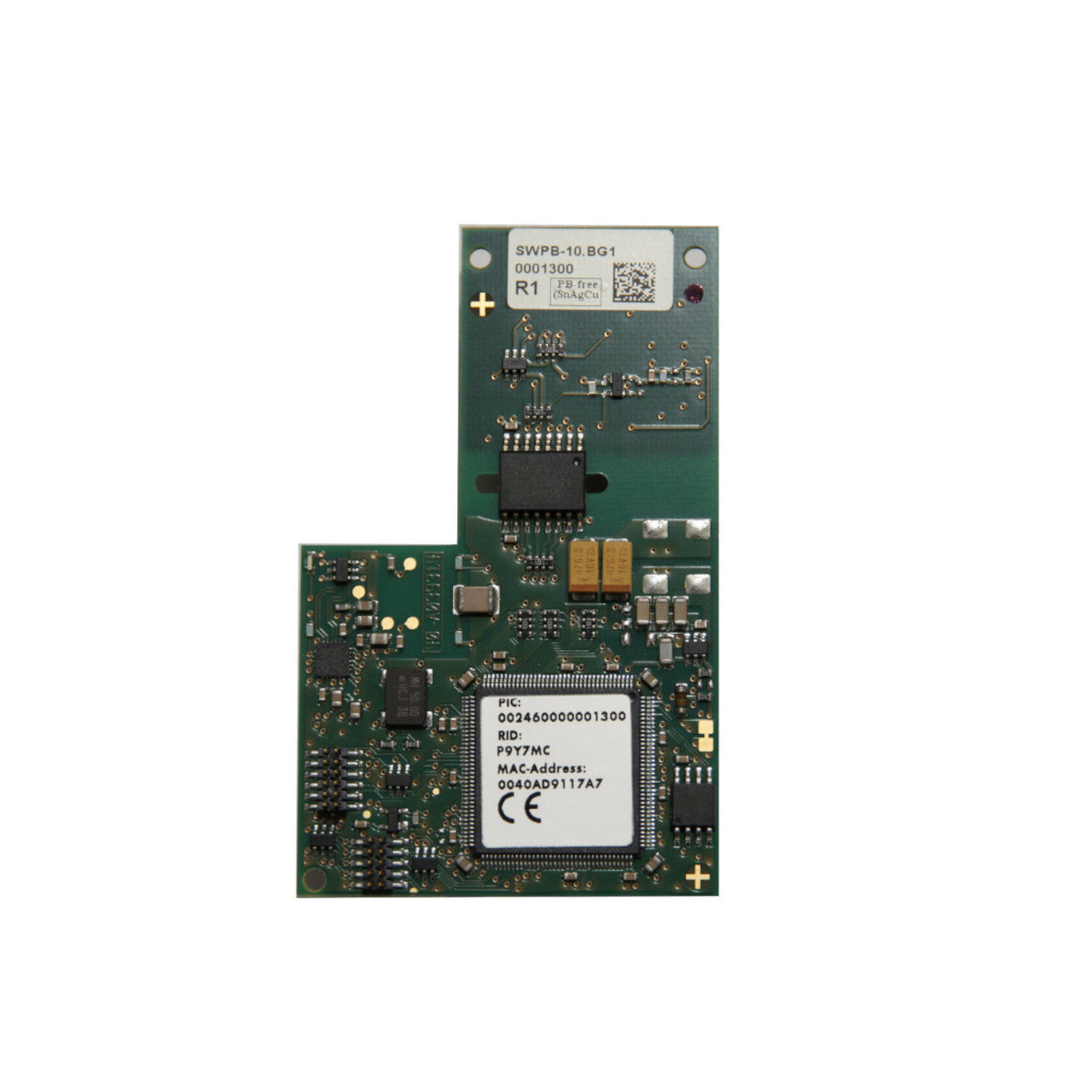

SWPB-US-10 SMA Webconnect (Ethernet) Piggy-Back

SMA SWPB-US-10 — Speedwire / Webconnect Piggy-Back Module

The SMA SWPB-US-10 Webconnect Piggy-Back adds Speedwire Ethernet connectivity and Webconnect remote monitoring to compatible legacy SMA SB-series string inverters. Using the SMA Data2+ protocol over a standard 10/100 Mbit Ethernet interface, it enables reliable monitoring and control of your PV system without a separate data logger.

Key Features

• Speedwire Ethernet Interface — 10/100 Mbit data transmission via standard Ethernet/IP
• Webconnect Function — direct internet monitoring without a separate data logger
• SMA Data2+ Protocol — optimized communication protocol for PV systems
• Ultra-Compact Form Factor — 83mm × 15mm × 51mm, 136.1g
• Part Number SWPB-US-10 — OEM SMA accessory with 60-month warranty

Compatible Inverter Models

• SB 5000US / SB 6000US / SB 7000US / SB 8000US
• SB 6000TLUS-10 / SB 7000TLUS-10 / SB 8000TLUS-10 / SB 9000TLUS-10 / SB 10000TLUS-10
• SB 5000US-11 / SB 6000US-11 / SB 7000US-11 / SB 8000US-11
• SB 3000US-12 / SB 3800US-12 / SB 4000US-12
• SB 5000US-12 / SB 6000US-12 / SB 7000US-12 / SB 8000US-12
• SB 6000TLUS-12 / SB 7000TLUS-12 / SB 8000TLUS-12 / SB 9000TLUS-12 / SB 10000TLUS-12 / SB 11000TLUS-12

Contact us for pricing. Ships from Thunder Battery — Canada's trusted battery dealer.
