TS-45 Morningstar PWM Solar Charge Controller 12/24/48V 45A TriStar

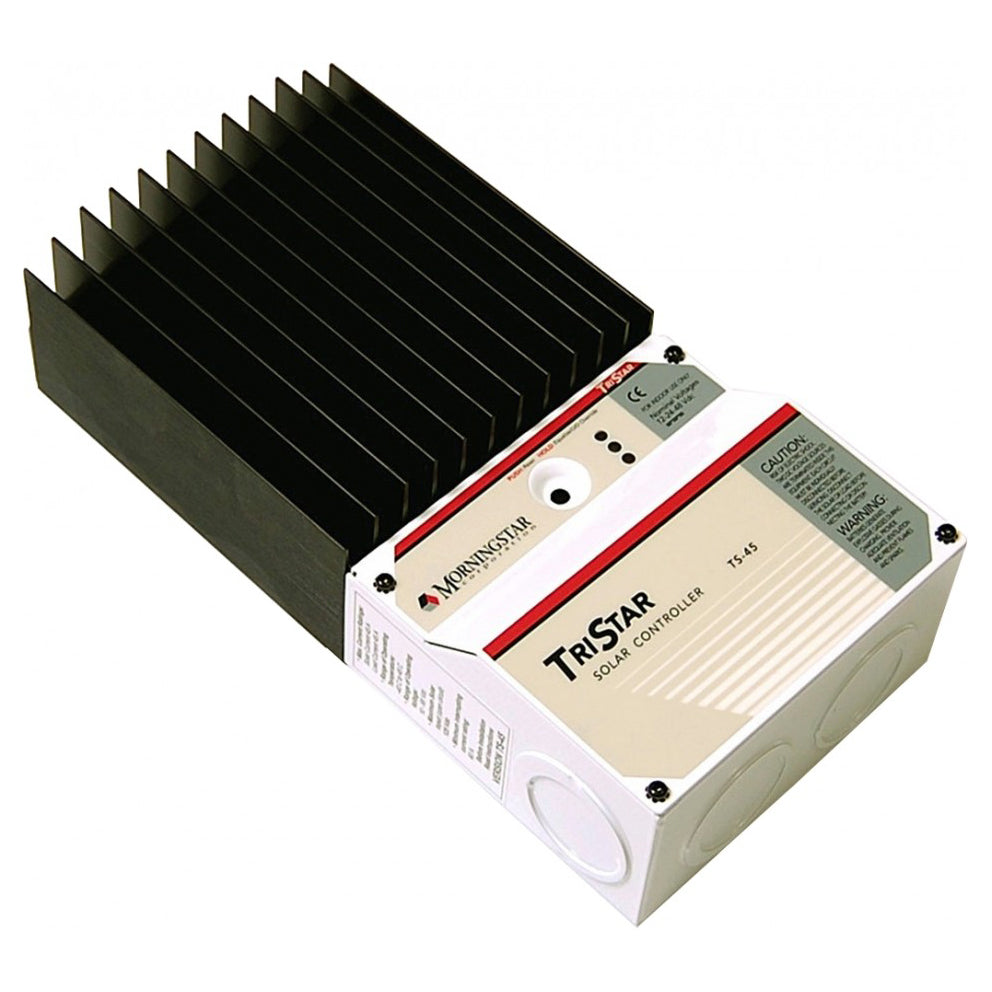

Morningstar TriStar TS-45 PWM Solar Charge Controller 12/24/48V 45A

The Morningstar TriStar TS-45 is a professional-grade PWM solar charge controller delivering 45A of charge current for 12V, 24V, and 48V battery systems. Renowned for its reliability and durability, the TriStar series is a trusted choice for off-grid, telecom, and commercial solar installations worldwide. With MeterBus communication, it supports remote monitoring via Morningstar's MSView software and optional remote meters.

Key Features

• 45A charge current — high-current PWM charging for 12V, 24V, and 48V systems
• Three-stage PWM charging — bulk, absorption, and float for optimized battery life
• MeterBus communication — supports remote meters, relay driver, and MSView PC software
• Durable construction — built for harsh environments and long-term reliability
• LED status indicators — clear visual feedback on system status
• Optional on-board meter — compatible with TS-M-2 digital meter

Specifications

• Max charge current: 45A
• Battery voltage: 12V / 24V / 48V
• Charging algorithm: PWM (3-stage)
• Communication: MeterBus
• Battery types: Sealed, Gel, Flooded lead-acid

Ideal For

• Off-grid solar installations
• Telecom and industrial solar power systems
• 12V, 24V, and 48V battery banks
• Commercial and remote power applications

Ships from Thunder Battery — Canada's trusted solar equipment dealer.
